5682212232
Or copy the link below:
- Mfr.Part #
- 5682212232
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description

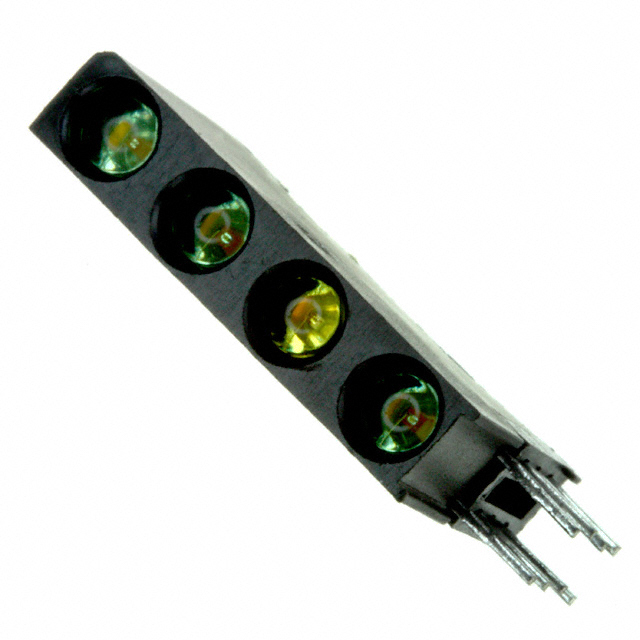

- 3MM LED QUAD LEVEL PCB G-G-Y-G
- Stock
- 41,150
- In Stock ：
- 41,150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Mounting Type :
- Through Hole, Right Angle
- Optoelectronic Device Type :
- DUAL COLOR LED ARRAY
- Operating Temperature (Max) :
- 100°C
- Number of Functions :
- 4
- Configuration :
- 4 High
- Operating Temperature (Min) :
- -55°C
- Wavelength - Peak :
- 565nm 585nm
- Series :
- 568
- Overall Height :
- 20.32mm
- Millicandela Rating :
- 50mcd Green, 30mcd Yellow
- Lens Size :
- 3mm T-1
- Current :
- 10mA
- RoHS Status :
- Non-RoHS Compliant
- Color :
- Green (x 3), Yellow (x 1)
- JESD-609 Code :
- e4
- Terminal Pitch :
- 2.54mm
- Packaging :
- Bulk
- HTS Code :
- 8541.40.20.00
- Lens Type :
- TINTED
- Lens Style :
- Round with Domed Top
- Voltage - Rated :
- 2.1V
- Mount :
- Through Hole
- Number of Terminations :
- 8
- Terminal Finish :
- Copper/Nickel/Silver (Cu/Ni/Ag)
- Viewing Angle :
- 45°
- Packing Method :
- Bag
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Luminous Intensity :
- 30 mcd
- Illumination Color :
- Green, Yellow
- Datasheets
- 5682212232
