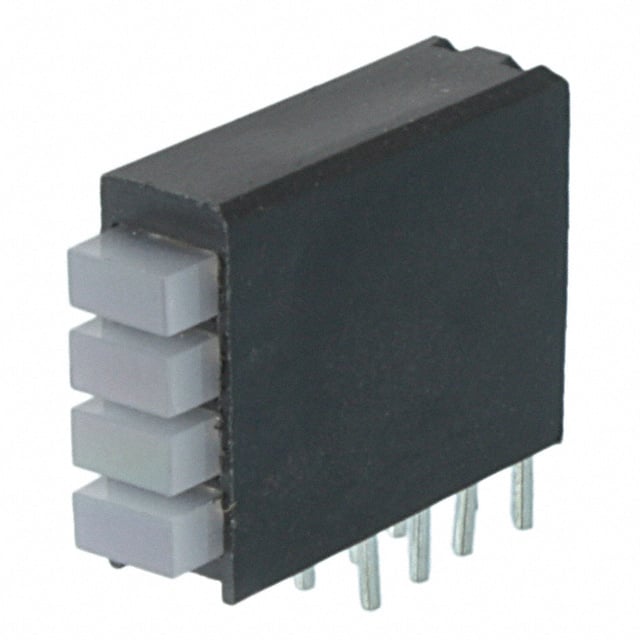

5680724444F

Manufacturer :

Dialight

Product Category :

Surface Mount :

No

Mounting Type :

Through Hole, Right Angle

Overall Height :

12.7mm

Viewing Angle :

140°

Color :

Green, Yellow (x 4)

Published :

2009

HTS Code :

8541.40.20.00

Lens Style :

Round with Domed Top

Packing Method :

Bag

Voltage - Rated :

2.1V

Packaging :

Bulk

Number of Terminations :

8

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Factory Lead Time :

10 Weeks

Millicandela Rating :

3.7mcd Green, 2.5mcd Yellow

Wavelength - Peak :

565nm 585nm

Operating Temperature (Max) :

100°C

Mounting Feature :

RADIAL MOUNT

Number of LEDs :

4

JESD-609 Code :

e4

Current :

20mA

Terminal Pitch :

2.54mm

Configuration :

4 High

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shape :

RECTANGULAR

Number of Functions :

4

Series :

568

Luminous Intensity :

2.5/3.7 mcd

Lens Size :

3mm T-1
