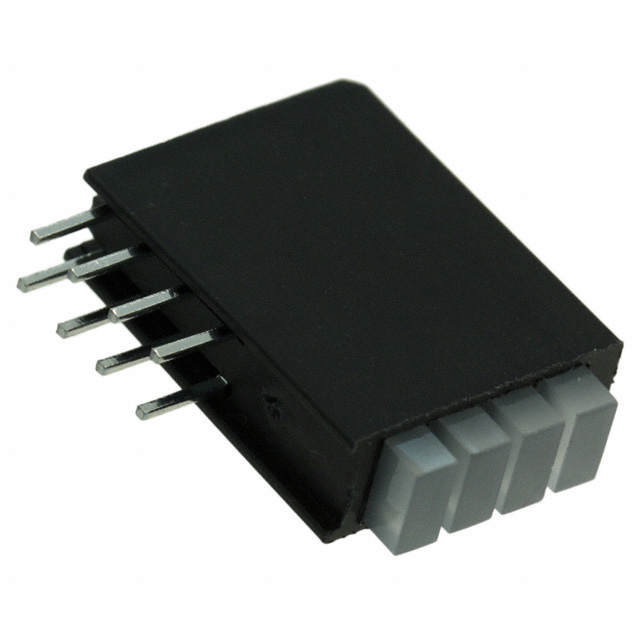

5680721111F

Manufacturer :

Dialight

Product Category :

Number of Functions :

4

Current :

20mA

Voltage - Rated :

2.1V Green 2V Red

Wavelength - Peak :

565nm 630nm

JESD-609 Code :

e4

Pbfree Code :

yes

Published :

2009

Operating Temperature (Min) :

-55°C

Lens Style :

Round with Domed Top

Mounting Type :

Through Hole, Right Angle

Color :

Green, Red (x 4)

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Mounting Feature :

RADIAL MOUNT

Terminal Pitch :

2.54mm

Operating Temperature (Max) :

100°C

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

RoHS Status :

ROHS3 Compliant

Millicandela Rating :

5.6mcd

Surface Mount :

No

Packing Method :

Bag

Configuration :

4 High

Luminous Intensity :

5.6 mcd

Shape :

RECTANGULAR

Factory Lead Time :

10 Weeks

Series :

568

HTS Code :

8541.40.20.00

Lens Type :

Diffused

Overall Height :

12.7mm

Number of LEDs :

4

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

8

Lens Size :

5mm T-1 3/4

Viewing Angle :

140°
