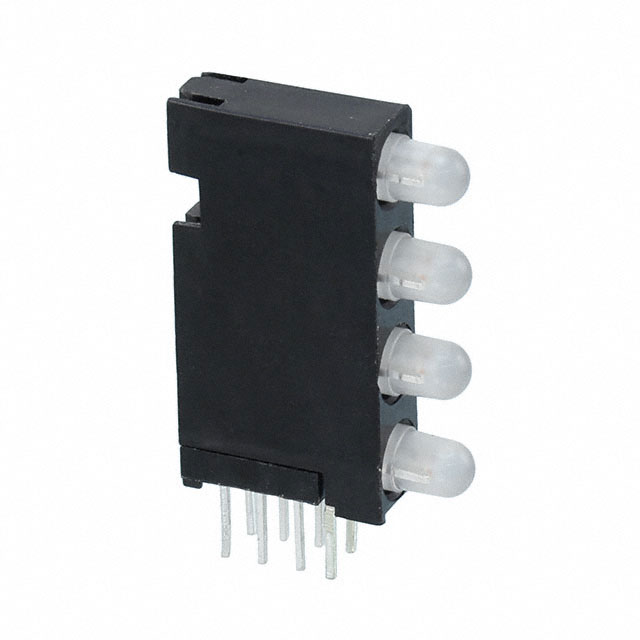

5680704445F
Or copy the link below:
- Mfr.Part #
- 5680704445F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED CBI 3MM QUAD LEVEL
- Stock
- 36,116
- In Stock ：
- 36,116
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Color :
- RED/YELLOW/GREEN
- Operating Temperature (Min) :
- -55°C
- Reverse Voltage-Max :
- 5V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shape :
- Cylindrical
- Forward Voltage-Max :
- 2.6V
- Forward Current-Max :
- 0.02A
- T-code :
- T-1
- Terminal Pitch :
- 1.91mm
- Overall Height :
- 20.32mm
- Viewing Angle :
- 80 deg
- Number of LEDs :
- 2
- Surface Mount :
- No
- Size :
- 3mm
- Number of Terminations :
- 8
- Configuration :
- SEPARATE, 4 ELEMENTS
- Mounting Feature :
- THROUGH HOLE MOUNT
- Operating Temperature (Max) :
- 100°C
- Number of Functions :
- 4
- Peak Wavelength :
- 630/585/565 nm
- Optoelectronic Device Type :
- DUAL COLOR LED ARRAY
- Factory Lead Time :
- 10 Weeks
- RoHS Status :
- ROHS3 Compliant
- Lens Type :
- Diffused
- Luminous Intensity :
- 8.7 mcd
- Datasheets
- 5680704445F
5680704445F Documents
5680704445F datasheet pdf and LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs product details from Dialight stock available at
