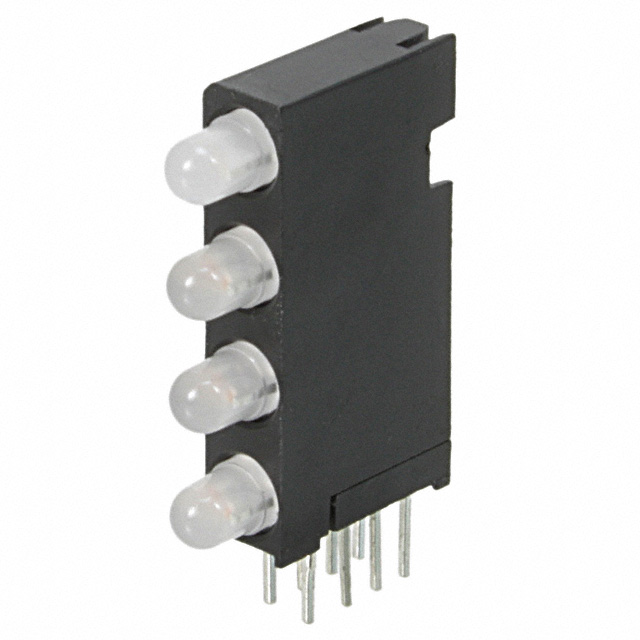

5680701444F

Manufacturer :

Dialight

Product Category :

Number of Terminations :

8

JESD-609 Code :

e4

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Lens Size :

5mm T-1 3/4

Terminal Pitch :

1.91mm

Shape :

Cylindrical

RoHS Status :

ROHS3 Compliant

Series :

568

Forward Voltage-Max :

2.6V

Mounting Type :

Through Hole, Right Angle

Overall Height :

20.32mm

Voltage - Rated :

2.1V Green 2V Red 2.1V Yellow

T-code :

T-1

Luminous Intensity :

8.7 mcd

Operating Temperature (Max) :

100°C

Factory Lead Time :

10 Weeks

Millicandela Rating :

10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow

Color :

Green, Red (x 1), Green, Yellow (x 3)

Lens Type :

Diffused

Reverse Voltage-Max :

5V

Current :

30mA Green 30mA Red 20mA Yellow

Configuration :

4 High

Wavelength - Peak :

565nm 635nm 585nm

Number of LEDs :

2

HTS Code :

8541.40.20.00

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Packaging :

Bulk

Mounting Feature :

THROUGH HOLE MOUNT

Surface Mount :

No

Number of Functions :

4

Published :

2009

Operating Temperature (Min) :

-55°C

Lens Style :

Round with Domed Top

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Viewing Angle :

60° Green-Red, 80° Green-Yellow
