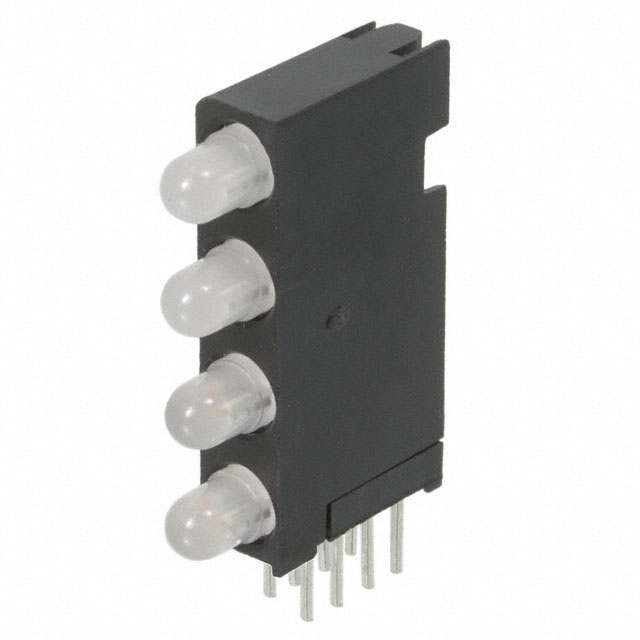

5680701144F

Manufacturer :

Dialight

Product Category :

Lens Size :

3mm T-1

Viewing Angle :

60° Green-Red, 80° Green-Yellow

Number of Functions :

4

Overall Height :

20.32mm

Terminal Pitch :

1.91mm

Current :

30mA Green 30mA Red 20mA Yellow

Number of Terminations :

8

Configuration :

4 High

Packaging :

Bulk

Lens Type :

Diffused

Operating Temperature (Max) :

100°C

Mounting Feature :

THROUGH HOLE MOUNT

Series :

568

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Operating Temperature (Min) :

-55°C

Reverse Voltage-Max :

5V

T-code :

T-1

JESD-609 Code :

e4

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

10 Weeks

Shape :

Cylindrical

Color :

Green, Red (x 2), Green, Yellow (x 2)

RoHS Status :

ROHS3 Compliant

Number of LEDs :

2

Published :

2009

HTS Code :

8541.40.20.00

Forward Voltage-Max :

2.6V

Wavelength - Peak :

565nm 635nm 585nm

Luminous Intensity :

8.7 mcd

Millicandela Rating :

10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated :

2.1V Green 2V Red 2.1V Yellow

Surface Mount :

No

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Lens Style :

Round with Domed Top
