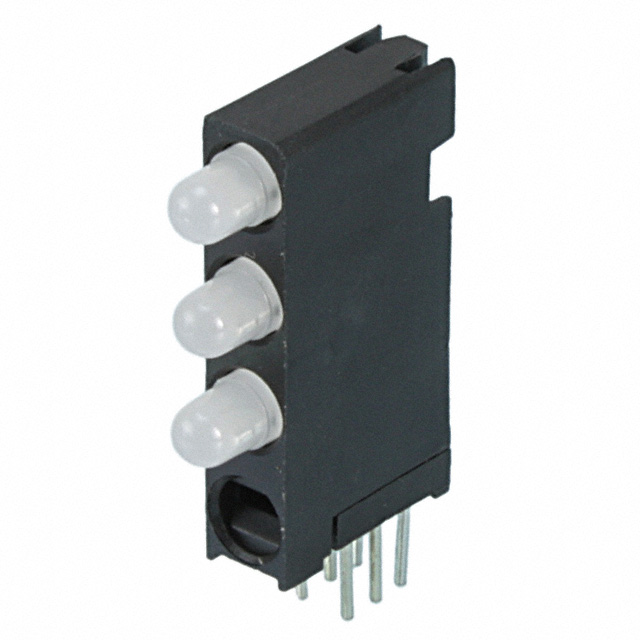

5680701110F

Manufacturer :

Dialight

Product Category :

Lens Style :

Round with Domed Top

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Terminal Pitch :

1.91mm

Lens Size :

5mm T-1 3/4

Viewing Angle :

60°

Mounting Type :

Through Hole, Right Angle

RoHS Status :

ROHS3 Compliant

Surface Mount :

No

Luminous Intensity :

5.6/8.7 mcd

Series :

568

Reverse Voltage-Max :

5V

Shape :

Cylindrical

Factory Lead Time :

10 Weeks

Published :

2009

Color :

Green, Red (x 3), Blank (x 1)

Configuration :

4 High

Wavelength - Peak :

565nm 635nm

JESD-609 Code :

e4

Number of LEDs :

2

Current :

30mA Green 30mA Red

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Number of Terminations :

8

Mounting Feature :

THROUGH HOLE MOUNT

Operating Temperature (Min) :

-55°C

Packaging :

Bulk

Voltage - Rated :

2.1V Green 2V Red

Operating Temperature (Max) :

100°C

T-code :

T-1

Lens Type :

Diffused

Overall Height :

20.32mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Functions :

4

HTS Code :

8541.40.20.00

Millicandela Rating :

10mcd Green, 4.7mcd Red

Forward Voltage-Max :

2.6V
