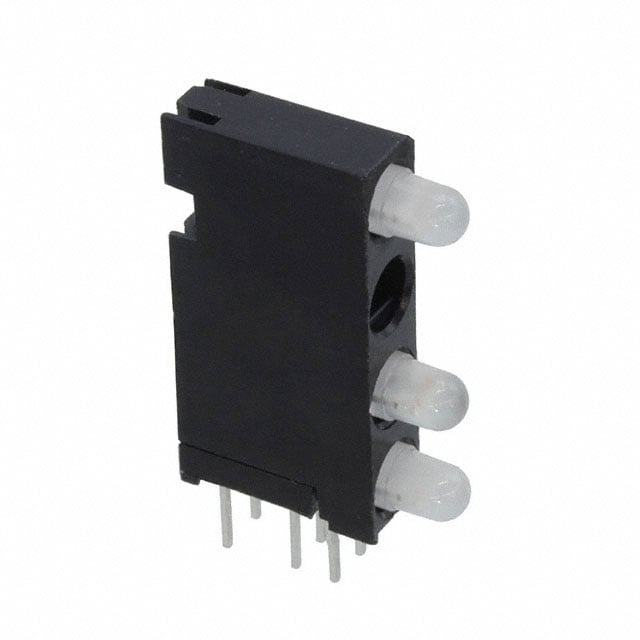

5680701041F

Manufacturer :

Dialight

Product Category :

Shape :

Cylindrical

Voltage - Rated :

2.1V Green 2V Red 2.1V Yellow

Mounting Feature :

THROUGH HOLE MOUNT

Operating Temperature (Max) :

100°C

Forward Voltage-Max :

2.6V

Number of Functions :

4

T-code :

T-1

RoHS Status :

ROHS3 Compliant

Published :

2009

Series :

568

Current :

30mA Green 30mA Red 20mA Yellow

Wavelength - Peak :

565nm 635nm 585nm

Millicandela Rating :

10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow

Luminous Intensity :

8.7 mcd

Operating Temperature (Min) :

-55°C

Terminal Pitch :

1.91mm

Color :

Green, Red (x 2), Green, Yellow (x 1), Blank (x 1)

Surface Mount :

No

Reverse Voltage-Max :

5V

Number of Terminations :

8

Overall Height :

20.32mm

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

10 Weeks

Number of LEDs :

2

Lens Type :

Diffused

HTS Code :

8541.40.20.00

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size :

3mm

Packaging :

Bulk

Configuration :

4 High

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Viewing Angle :

60° Green-Red, 80° Green-Yellow
