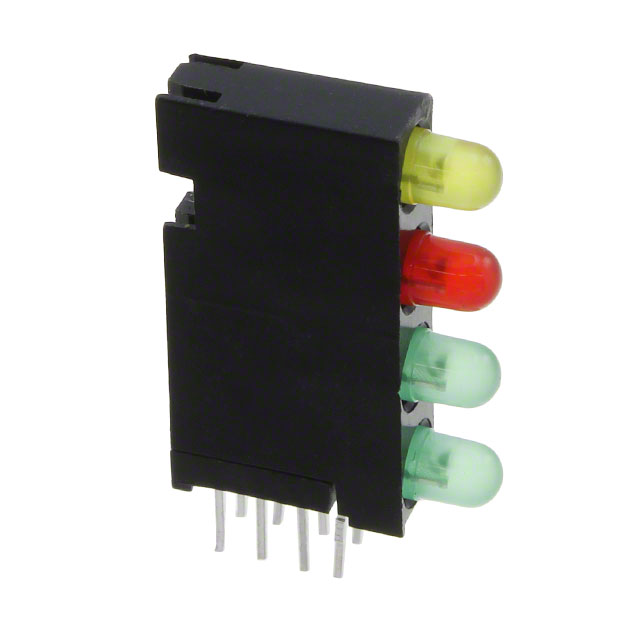

5680103122F

Manufacturer :

Dialight

Product Category :

Millicandela Rating :

12.6mcd Green, 10mcd Red, 10mcd Yellow

Lens Style :

Round with Domed Top

Optoelectronic Device Type :

TRIPLE COLOR LED ARRAY

Number of Terminations :

8

Operating Temperature (Max) :

100°C

Luminous Intensity :

10.0/12.6 mcd

Voltage - Rated :

2.1V Green 2V Red 2.1V Yellow

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Pitch :

2.54mm

Current :

30mA Green 30mA Red 20mA Yellow

Number of Functions :

4

Number of LEDs :

4

Packaging :

Bulk

Wavelength - Peak :

565nm 635nm 585nm

Mounting Feature :

RADIAL MOUNT

Packing Method :

Bag

Series :

568

Factory Lead Time :

10 Weeks

Luminous Intensity-Min :

0.0047 cd

Color :

Green (x 2), Red (x 1), Yellow (x 1)

Overall Height :

20.32mm

Mounting Type :

Through Hole, Right Angle

HTS Code :

8541.40.20.00

Configuration :

4 High

Forward Voltage-Max :

2.8V

Viewing Angle :

60°

Lens Size :

3.00mm Dia

Surface Mount :

No

T-code :

T-1

Operating Temperature (Min) :

-55°C

Published :

2009
