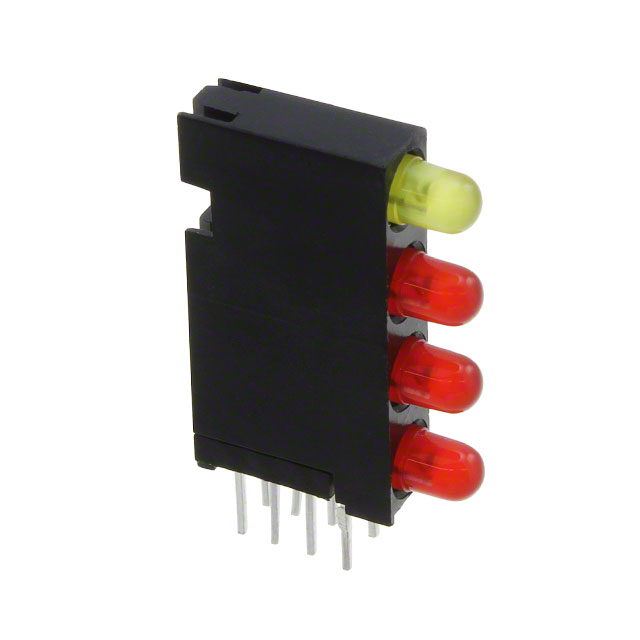

5680103111F

Manufacturer :

Dialight

Product Category :

T-code :

T-1

Factory Lead Time :

10 Weeks

Number of Terminations :

8

Wavelength - Peak :

635nm 585nm

Overall Height :

20.32mm

Millicandela Rating :

10mcd Red, 10mcd Yellow

Luminous Intensity :

10.0 mcd

Number of Functions :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Red (x 3), Yellow (x 1)

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Mounting Feature :

RADIAL MOUNT

Current :

30mA Red 20mA Yellow

Mounting Type :

Through Hole, Right Angle

Luminous Intensity-Min :

0.0074 cd

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Surface Mount :

No

Configuration :

4 High

Voltage - Rated :

2V Red 2.1V Yellow

HTS Code :

8541.40.20.00

Terminal Pitch :

2.54mm

Viewing Angle :

60°

Forward Voltage-Max :

2.8V

Operating Temperature (Min) :

-55°C

RoHS Status :

ROHS3 Compliant

Lens Style :

Round with Domed Top

Published :

2009

Number of LEDs :

4

Packing Method :

Bag

Lens Size :

5mm T-1 3/4

Operating Temperature (Max) :

100°C

JESD-609 Code :

e4

Packaging :

Bulk

Series :

568
