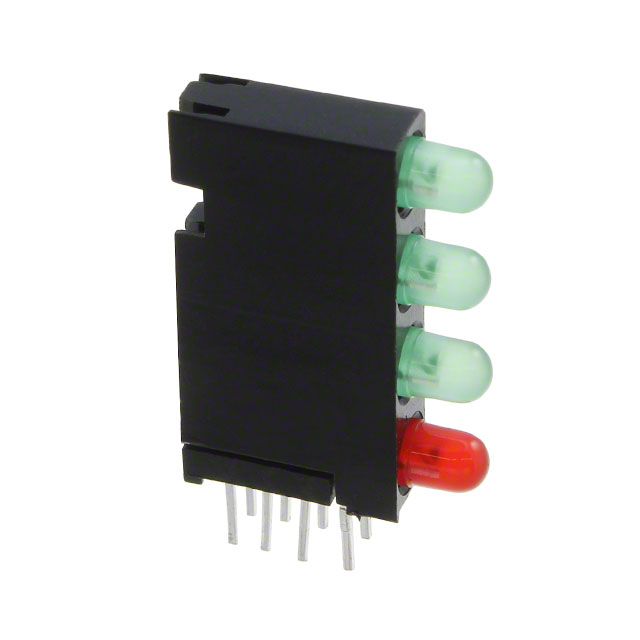

5680102221F

Manufacturer :

Dialight

Product Category :

Terminal Pitch :

2.54mm

Shape :

Round

Series :

568

Lens Style :

Rectangle with Flat Top

Factory Lead Time :

10 Weeks

Wavelength - Peak :

565nm

Packaging :

Bulk

Voltage - Rated :

2.1V

Luminous Intensity :

10.0/12.6 mcd

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

T-code :

T-1

HTS Code :

8541.40.20.00

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Mounting Type :

Through Hole, Right Angle

Configuration :

4 High

Luminous Intensity-Min :

0.0047 cd

Operating Temperature (Min) :

-55°C

Lens Size :

5.00mmx2.70mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of LEDs :

4

Current :

20mA

Number of Functions :

4

RoHS Status :

ROHS3 Compliant

Color :

Green (x 3), Red (x 1)

Packing Method :

Bag

Overall Height :

20.32mm

Published :

2009

Forward Voltage-Max :

2.8V

Mounting Feature :

RADIAL MOUNT

JESD-609 Code :

e4

Millicandela Rating :

12.6mcd

Operating Temperature (Max) :

100°C

Surface Mount :

No

Viewing Angle :

60°

Number of Terminations :

8
