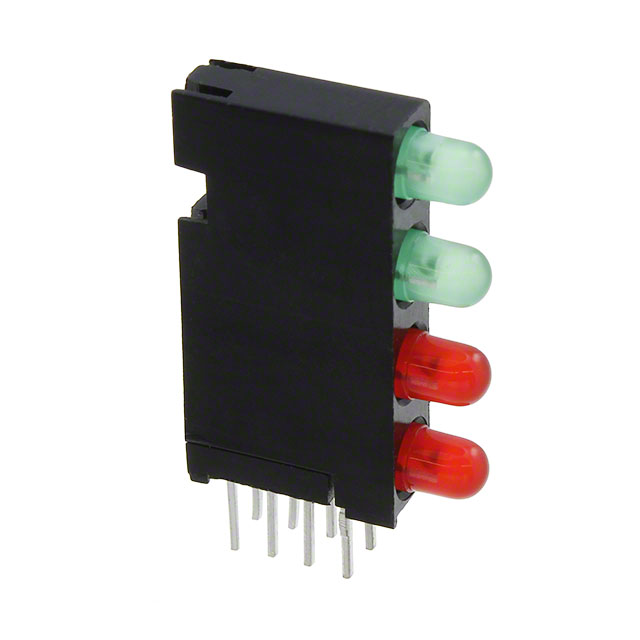

5680102211F

Manufacturer :

Dialight

Product Category :

Published :

2006

Lens Size :

5.00mmx2.50mm

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Wavelength - Peak :

565nm 635nm

Viewing Angle :

60°

Number of LEDs :

4

Packing Method :

Bag

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Luminous Intensity :

10.0/12.6 mcd

Color :

Green (x 2), Red (x 2)

Surface Mount :

No

Number of Functions :

4

Voltage - Rated :

2.1V Green 2V Red

Luminous Intensity-Min :

0.0047 cd

Mounting Type :

Through Hole, Right Angle

Operating Temperature (Min) :

-55°C

Operating Temperature (Max) :

100°C

Overall Height :

20.32mm

Mounting Feature :

RADIAL MOUNT

Number of Terminations :

8

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Pitch :

2.54mm

JESD-609 Code :

e4

T-code :

T-1

Configuration :

4 High

Millicandela Rating :

12.6mcd Green, 10mcd Red

Factory Lead Time :

10 Weeks

Packaging :

Bulk

Series :

568

Forward Voltage-Max :

2.8V

Shape :

Round

Current :

30mA Green 30mA Red

RoHS Status :

ROHS3 Compliant

Lens Style :

Rectangle with Flat Top

HTS Code :

8541.40.20.00
