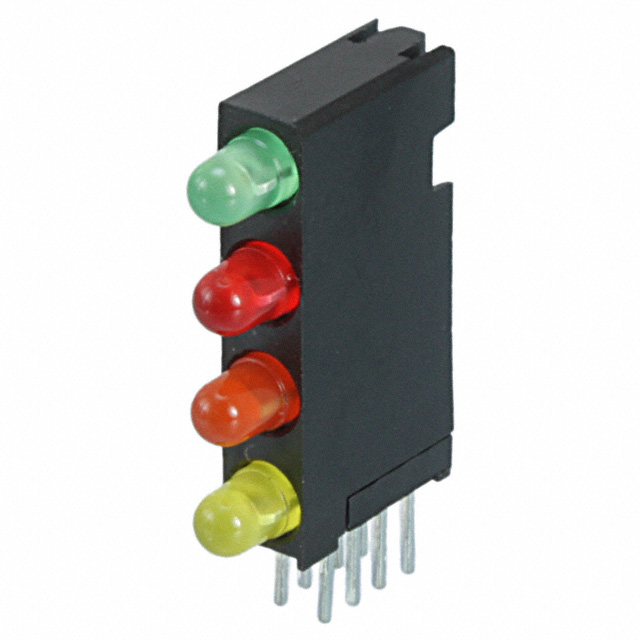

5680102173F

Manufacturer :

Dialight

Product Category :

Luminous Intensity :

10.0/7.0/10.0/12.6 mcd

Overall Height :

20.32mm

Shape :

Round

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Configuration :

4 High

Operating Temperature (Max) :

100°C

HTS Code :

8541.40.20.00

Packaging :

Bulk

Luminous Intensity-Min :

0.0034 cd

JESD-609 Code :

e4

Number of Functions :

4

RoHS Status :

ROHS3 Compliant

T-code :

T-1

Wavelength - Peak :

565nm 600nm 635nm 585nm

Color :

Green (x 1), Orange (x 1), Red (x 1), Yellow (x 1)

Series :

568

Forward Voltage-Max :

2.8V

Packing Method :

Bag

Current :

30mA Green 25mA Orange 30mA Red 20mA Yellow

Lens Size :

5.30mmx1.80mm

Published :

2009

Number of LEDs :

4

Lens Style :

Rectangle with Flat Top

Optoelectronic Device Type :

MULTIPLE COLOR LED ARRAY

Surface Mount :

No

Millicandela Rating :

12.6mcd Green, 7mcd Orange, 10mcd Red, 10mcd Yellow

Voltage - Rated :

2.1V Green 2.2V Orange 2V Red 2.1V Yellow

Number of Terminations :

8

Viewing Angle :

60°

Mounting Type :

Through Hole, Right Angle

Mounting Feature :

RADIAL MOUNT

Factory Lead Time :

10 Weeks

Operating Temperature (Min) :

-55°C

Terminal Pitch :

2.54mm
