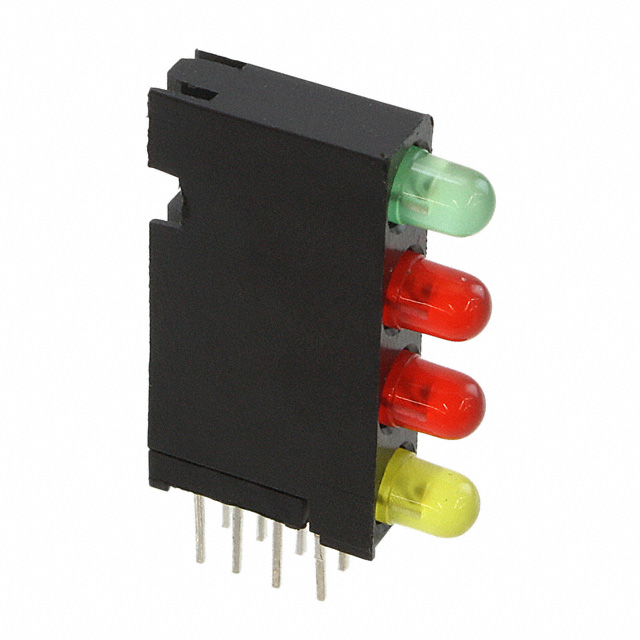

5680102113F

Manufacturer :

Dialight

Product Category :

Overall Height :

20.32mm

Packing Method :

Bag

Luminous Intensity :

10.0/12.6 mcd

Operating Temperature (Max) :

100°C

Lens Size :

5mm T-1 3/4

Voltage - Rated :

2.1V Green 2V Red 2.1V Yellow

Luminous Intensity-Min :

0.0047 cd

Viewing Angle :

60°

Surface Mount :

No

JESD-609 Code :

e4

Wavelength - Peak :

565nm 635nm 585nm

Number of Terminations :

8

Mounting Feature :

RADIAL MOUNT

Optoelectronic Device Type :

TRIPLE COLOR LED ARRAY

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature (Min) :

-55°C

T-code :

T-1

Published :

2009

Number of Functions :

4

Forward Voltage-Max :

2.8V

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

HTS Code :

8541.40.20.00

Configuration :

4 High

Series :

568

Lens Style :

Round with Domed Top

RoHS Status :

ROHS3 Compliant

Millicandela Rating :

12.6mcd Green, 10mcd Red, 10mcd Yellow

Terminal Pitch :

2.54mm

Current :

30mA Green 30mA Red 20mA Yellow

Number of LEDs :

4

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

10 Weeks

Packaging :

Bulk

Color :

Green (x 1), Red (x 2), Yellow (x 1)
