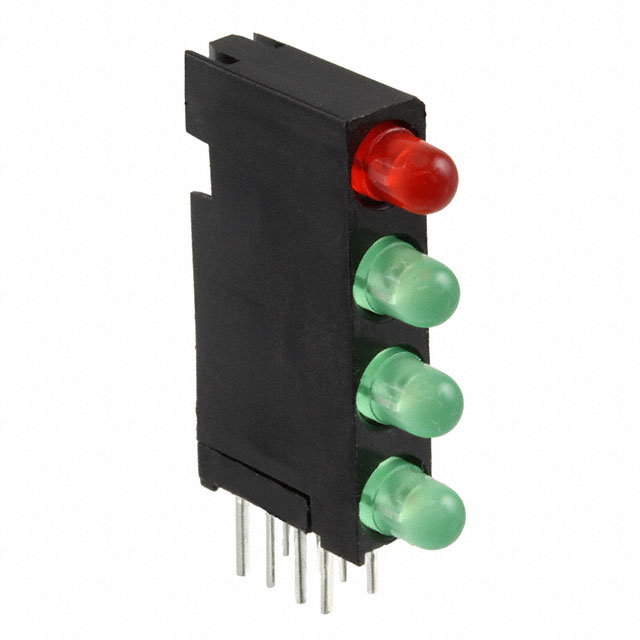

5680101222F

Manufacturer :

Dialight

Product Category :

RoHS Status :

ROHS3 Compliant

Forward Voltage-Max :

2.8V

Millicandela Rating :

12.6mcd Green, 10mcd Red

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Number of Terminations :

8

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Mounting Type :

Through Hole, Right Angle

Terminal Pitch :

2.54mm

Lens Size :

8.89mmx3.81mm

Mounting Feature :

RADIAL MOUNT

Series :

568

Voltage - Rated :

2.1V Green 2V Red

Viewing Angle :

60°

Luminous Intensity-Min :

0.0047 cd

Surface Mount :

No

Wavelength - Peak :

565nm 635nm

HTS Code :

8541.40.20.00

Color :

Green (x 3), Red (x 1)

Current :

20mA

Shape :

Round

Operating Temperature (Max) :

100°C

Configuration :

4 High

T-code :

T-1

Factory Lead Time :

10 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Overall Height :

20.32mm

Number of LEDs :

4

JESD-609 Code :

e4

Published :

2009

Luminous Intensity :

10.0/12.6 mcd

Operating Temperature (Min) :

-55°C

Lens Style :

Rectangle with Flat Top

Number of Functions :

4

Packing Method :

Bag
