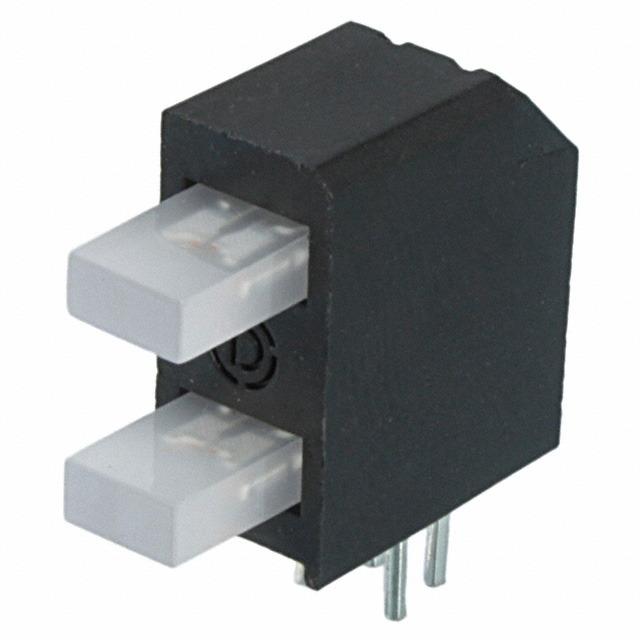

5670711F

Manufacturer :

Dialight

Product Category :

Current :

20mA

Number of Terminations :

4

Wavelength - Peak :

565nm 630nm

Configuration :

2 High

JESD-609 Code :

e4

Lens Type :

Diffused, Tinted

Operating Temperature (Max) :

100°C

Series :

567

Lens Style :

Oval with Domed Top

Lens Size :

1.83mmx1.73mm

Mounting Type :

Through Hole, Right Angle

RoHS Status :

ROHS3 Compliant

Mounting Feature :

RADIAL MOUNT

Number of Functions :

2

Voltage - Rated :

2.1V Green 2V Red

Shape :

RECTANGULAR

Factory Lead Time :

10 Weeks

HTS Code :

8541.40.20.00

Millicandela Rating :

5.6mcd

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Published :

2013

Forward Voltage-Max :

2.1V

Luminous Intensity :

5.6 mcd

Operating Temperature (Min) :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Green, Red (x 2)

Overall Height :

12.52mm

Packaging :

Bulk

Surface Mount :

No

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Viewing Angle :

140°

Terminal Pitch :

2.54mm

Pbfree Code :

yes
