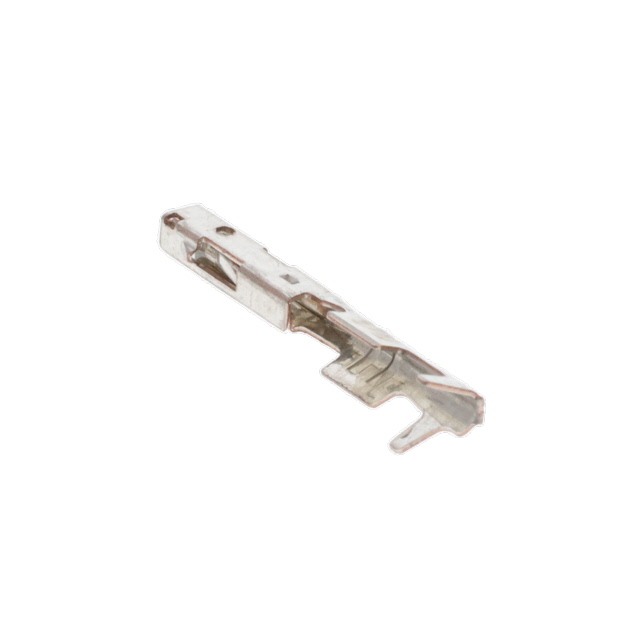

    5600230423

    Share

    Or copy the link below:

    Mfr.Part #
    5600230423
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CTX50 RCPT TERM SN M-GRIP B WIND
    Stock
    51,390
    In Stock ：
    51,390

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Rectangular Connector Contacts
    Product Height (mm) :
    1.95
    Lifecycle Status :
    Production (Last Updated: 2 years ago)
    Product :
    Terminals
    ECCN Code :
    EAR99
    Mounting :
    Cable Mount
    Contact Material :
    COPPER ALLOY
    Pbfree Code :
    yes
    Product Category :
    Automotive Connectors
    Country of Origin :
    US
    ECCN (US) :
    EAR99
    Wire Gauge :
    24 AWG
    Series :
    560023
    Contact Type :
    Power
    HTS Code :
    8536.90.40.00
    Wire Size (AWG) :
    24
    Current Rating :
    4 A
    Contact Termination :
    Crimp
    EU RoHS :
    Compliant
    Product Type :
    Automotive Connectors
    Maximum Current Rating (A) :
    3
    Connector Type :
    Connector Power
    Package :
    Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
    Type :
    Power
    Product Length (mm) :
    10.8
    Packaging :
    Reel
    Contact Finish Thickness :
    -
    Contact Plating :
    Tin
    Tradename :
    Mini50?
    PPAP :
    No
    Maximum Voltage Rating :
    14VDC
    Termination Method :
    Crimp
    Voltage Rating :
    14 VDC
    Termination Style :
    Crimp
    Shielded :
    No
    Gender :
    SKT
    Operating Temperature :
    -40 to 105 °C
    Manufacturer :
    Molex
    Number of Positions :
    -
    Base Product Number :
    560023
    RoHS :
    Compliant
    Body Orientation :
    Straight
    Subcategory :
    Automotive Connectors
    Product Length :
    10.8 mm
    Accessory Type :
    -
    Mounting Style :
    Cable Mount / Free Hanging
    Pitch :
    -
    Product Depth (mm) :
    2.25
    Manufacturer Lifecycle Status :
    ACTIVE (Last Updated: 2 years ago)
    Pin or Socket :
    Socket
    Application :
    Power
    Brand :
    Molex
    Contact Finish :
    Tin
    Automotive :
    No
    Product Status :
    Active
    Product Weight (g) :
    0.049
    Reach Compliance Code :
    Compliant
    Datasheets
    5600230423
    Introducing Rectangular Connector Contacts Molex 5600230423 from Chip IC,where excellence meets affordability. This product stands out with its Type：Power, Operating Temperature：-40 to 105 °C, 5600230423 pinout, 5600230423 datasheet PDF, 5600230423 amp .Beyond Rectangular Connector Contacts Molex 5600230423 ,we also offer 4281F2428-99, SWT25X-URTC-S01-UU-UU, SHF-001T-0.8BS, Our vast inventory has you covered. Contact us now for immediate solutions.
