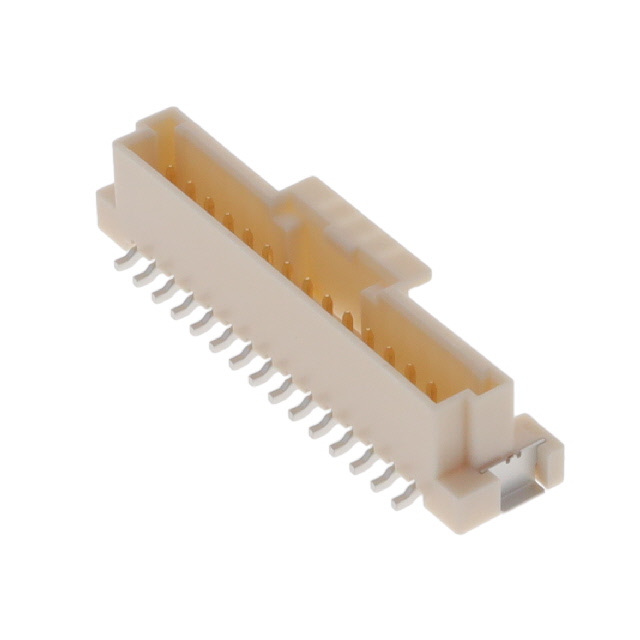

5600201530
Or copy the link below:
- Mfr.Part #
- 5600201530
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 15POS 2MM
- Stock
- 6,594
- In Stock ：
- 6,594
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Published :
- 2015
- Insulation Color :
- Natural
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 13 Weeks
- Insulation Height :
- 0.236 6.00mm
- Termination :
- Solder
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions :
- 15
- Insulation Material :
- Polyamide (PA), Nylon
- Feature :
- Solder Retention
- Applications :
- Automotive, Industrial
- Material Flammability Rating :
- UL94 V-0
- Series :
- DuraClik 560020
- Mounting Type :
- Surface Mount
- Contact Shape :
- Square
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 1
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Stack Height (Mating) :
- 9.3mm
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Latch Lock
- Packaging :
- Tape and Reel (TR)
- Pitch - Mating :
- 0.079 2.00mm
- Datasheets
- 5600201530
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 15-Position Board to Cable/Wire 0.236 6.00mm Height
5600201530 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the DuraClik 560020 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, Industrial.A number of features make the Solder Retention feature more powerful.
5600201530 Features
DuraClik 560020 series
5600201530 Applications
There are a lot of Molex
5600201530 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
