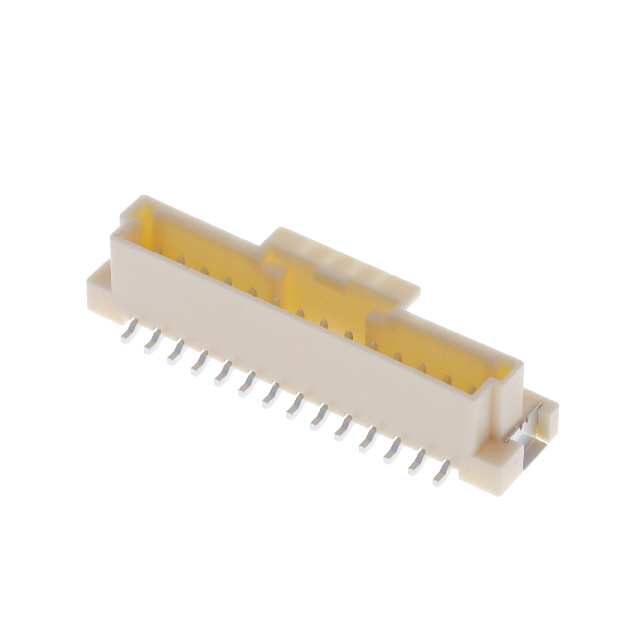

5600201420
Or copy the link below:
- Mfr.Part #
- 5600201420
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 14POS 2MM
- Stock
- 1,860
- In Stock ：
- 1,860
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Series :
- DuraClik 560020
- Fastening Type :
- Latch Lock
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2015
- Insulation Color :
- Natural
- Mounting Type :
- Surface Mount
- Pbfree Code :
- yes
- Factory Lead Time :
- 13 Weeks
- Shrouding :
- Shrouded - 4 Wall
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Termination :
- Solder
- Feature :
- Solder Retention
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 14
- Applications :
- Automotive, Industrial
- Packaging :
- Tape and Reel (TR)
- Connector Type :
- Header
- Stack Height (Mating) :
- 9.3mm
- Style :
- Board to Cable/Wire
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyamide (PA), Nylon
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Height :
- 0.236 6.00mm
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 5600201420
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 14-Position Board to Cable/Wire 0.236 6.00mm Height
5600201420 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the DuraClik 560020 Series.A possible application for the device is Automotive, Industrial.In many ways, its Solder Retention feature makes it more powerful.
5600201420 Features
DuraClik 560020 series
5600201420 Applications
There are a lot of Molex
5600201420 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
