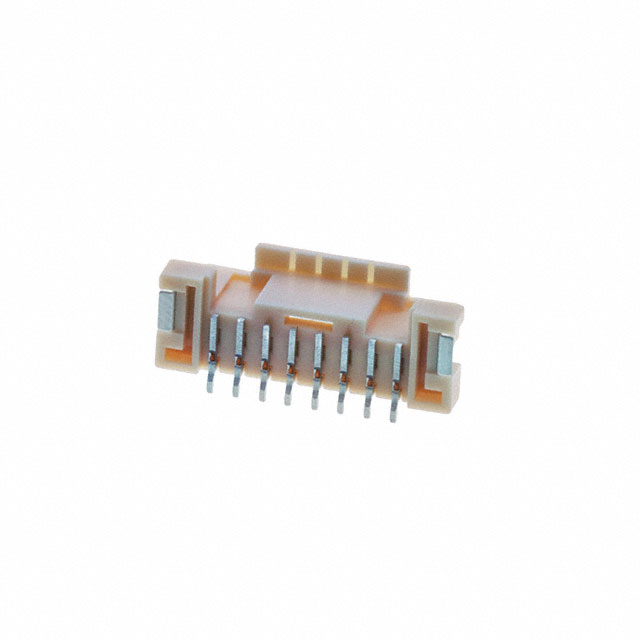

5600200830

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Connector Type :

Header

Rated Current (Signal) :

3A

Feature :

Solder Retention

Mounting Option 1 :

LOCKING

Contact Material :

COPPER ALLOY

Durability :

30 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Pbfree Code :

yes

Shrouding :

Shrouded - 4 Wall

Number of Conductors :

ONE

Contact Shape :

Square

Polarization Key :

POLARIZED HOUSING

Insulation Color :

Natural

Body Breadth :

0.307 inch

Series :

DuraClik 560020

Mating Contact Pitch :

0.079 inch

Operating Temperature (Min) :

-40°C

Stack Height (Mating) :

9.3mm

Number of Rows :

1

Dielectric Withstanding Voltage :

700VAC V

Board Mounting Option :

FITTING NAIL

Published :

2015

Number of Positions :

8

Terminal Pitch :

2.0066mm

Material Flammability Rating :

UL94 V-0

Style :

Board to Cable/Wire

RoHS Status :

ROHS3 Compliant

PCB Contact Pattern :

RECTANGULAR

Number of Positions Loaded :

All

Contact Finish - Mating :

Gold

Pitch - Mating :

0.079 2.00mm

Packaging :

Tape and Reel (TR)

Insulation Height :

0.236 6.00mm

Termination :

Solder

Contact Type :

Male Pin

Total Number of Contacts :

8

Number Of PCB Rows :

1

Applications :

Automotive, Industrial

Factory Lead Time :

11 Weeks

Reference Standard :

UL

Fastening Type :

Latch Lock

JESD-609 Code :

e3

Insulation Material :

Polyamide (PA), Nylon

Mounting Type :

Surface Mount
