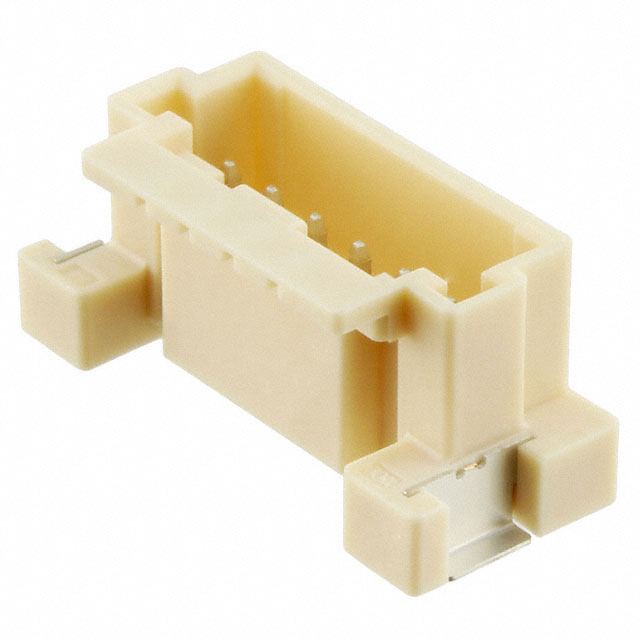

5600200600

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Rated Current (Signal) :

3A

Packaging :

Tape and Reel (TR)

Contact Material :

COPPER ALLOY

PCB Contact Pattern :

RECTANGULAR

Pitch - Mating :

0.079 2.00mm

Insulation Resistance :

1GOhm

Dielectric Withstanding Voltage :

700VAC V

Reference Standard :

UL

Glow Wire Compliant :

Non-Compliant

Mount :

Surface Mount

Mating Contact Pitch :

0.079 inch

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

105°C

Body Breadth :

0.307 inch

Orientation :

Vertical

Mounting Type :

Surface Mount

Termination :

Solder

Contact Shape :

Square

Reliability :

COMMERCIAL

Length :

18.6mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2011

Shrouding :

Shrouded - 4 Wall

Housing Material :

PBT

Contact Finish - Mating :

Tin

Housing Color :

Natural

Current Rating :

3A

Series :

DuraClik 560020

Stack Height (Mating) :

9.3mm

Applications :

Automotive, Industrial

Number of Positions Loaded :

All

Feature :

Solder Retention

Number Of PCB Rows :

1

Polarization Key :

POLARIZED HOUSING

Contact Gender :

Male

Fastening Type :

Latch Lock

Contact Type :

Male Pin

Voltage - Rated :

125V

Insulation Height :

0.315 8.00mm

Pbfree Code :

yes

ECCN Code :

EAR99

Insulation Material :

Polyamide (PA), Nylon

Durability :

30 Cycles

Number of Conductors :

ONE

Min Operating Temperature :

-40°C

Radiation Hardening :

No

Number of Rows :

1

REACH SVHC :

Unknown

Style :

Board to Cable/Wire

Number of Contacts :

6

Depth :

9.15mm

Connector Type :

Header
