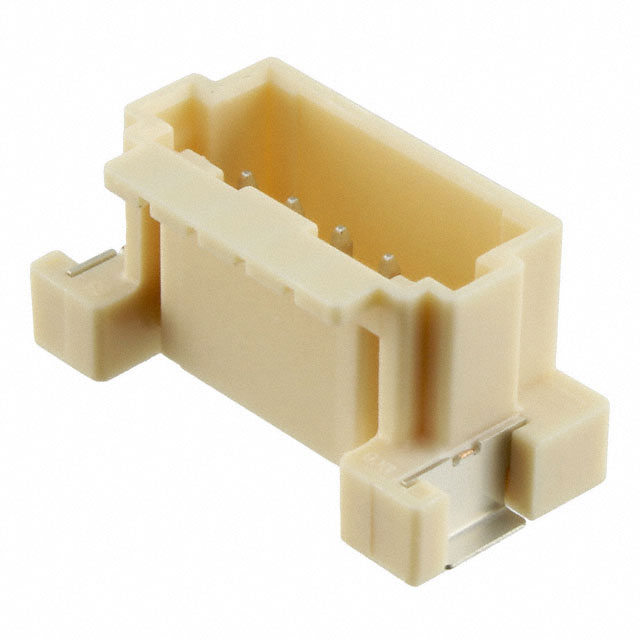

5600200500

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.079 inch

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Latch Lock

Insulation Color :

Natural

Number of Positions Loaded :

All

Rated Current (Signal) :

3A

Style :

Board to Cable/Wire

Reference Standard :

UL

Stack Height (Mating) :

9.3mm

Mounting Type :

Surface Mount

Total Number of Contacts :

5

Durability :

30 Cycles

Number Of PCB Rows :

1

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

Tin

Packaging :

Tape and Reel (TR)

Series :

DuraClik 560020

Operating Temperature (Min) :

-40°C

Insulation Height :

0.315 8.00mm

Insulation Material :

Polyamide (PA), Nylon

Contact Material :

COPPER ALLOY

Connector Type :

Header

Terminal Pitch :

2.0066mm

Contact Type :

Male Pin

Termination :

Solder

Feature :

Solder Retention

ECCN Code :

EAR99

Pitch - Mating :

0.079 2.00mm

Applications :

Automotive, Industrial

Published :

2011

Pbfree Code :

yes

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.307 inch

Reliability :

COMMERCIAL

Mounting Option 1 :

LOCKING

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Square

Number of Conductors :

ONE

Dielectric Withstanding Voltage :

700VAC V

RoHS Status :

ROHS3 Compliant

Number of Positions :

5
