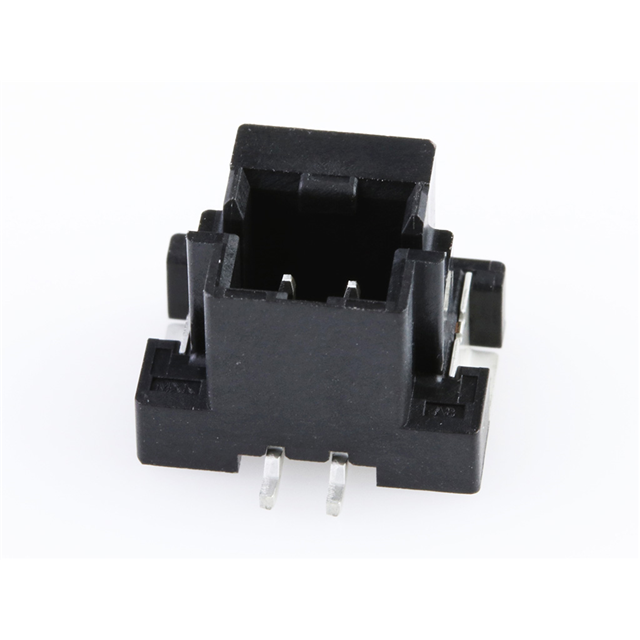

5600200221

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Base/Housing Material :

Polyamide

Operating Temp Range :

-40C to 125C

Contact Material :

COPPER ALLOY

Operating Temperature :

-40 to 125 °C

Total number of pins :

2

Max. temperature :

+125°C

Type :

SHROUDED

Number of Contacts :

2

Application :

Signal

Case material :

Polyamide

Contact Resistance Max :

10(mohm)

Pitch :

2 mm

Pitch (mm) :

2(mm)

Content :

1pc(s)

Manufacturer part # :

5600200221

Packaging type :

Tape on Full reel

Product Height (mm) :

8(mm)

Contact Plating :

Tin

Housing Color :

Black

Product Depth (mm) :

9.3(mm)

Product Length (mm) :

10.9(mm)

Nominal voltage :

125V DC/AC

Housing Material :

Polyamide

Product Length :

10.9 mm

Packaging :

Bag-packed

Mounting Style :

Surface Mount

Features :

+ locking mechanism

Body Orientation :

Straight

Nominal current :

3A

CS :

2mm

Termination Method :

Solder

No. of rows :

1

Min. temperature :

-40°C

Gender :

Header

Voltage Rating Max :

125VDC/125VAC

Product Status :

Active

Number of Rows :

1

Connection :

SMT

Orientation :

Vertical

Current Rating (Max) :

3/Contact(A)

RoHS Status :

RoHS Compliant

Connector contact surface :

Tin

Number of Contact Rows :

1

Mounting :

Surface Mount

Nominal current - rounded value :

3A
