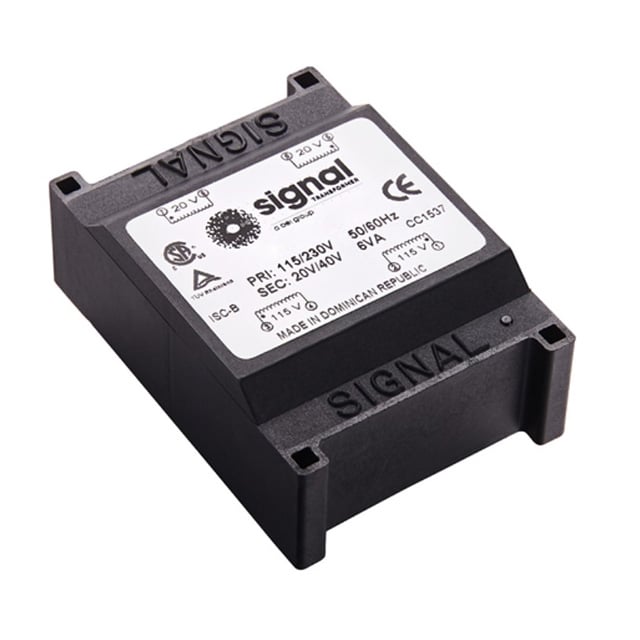

56-100-LPI

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Weight :

0.39lb 176.9g

Mounting Type :

Through Hole

Center Tap :

No

Physical Dimension :

60.2mm X 42.1mm X 22.7mm

Primary Winding(s) :

Dual

ECCN Code :

EAR99

Additional Feature :

PCB MOUNTABLE

Current - Output (Max) :

Parallel 200mA Series 100mA

Number of Secondary Winding :

2

Factory Lead Time :

18 Weeks

Lead Free :

Lead Free

Frequency :

60Hz

Series :

LPI

Height Seated (Max) :

22.70mm

Width :

42.1mm

Output Power :

6W

Length :

60.2mm

Size / Dimension :

60.20mm Lx42.10mm W

Published :

2009

Number of Contacts :

8

Mount :

Through Hole

Voltage - Primary :

115V 230V

Termination :

PC Pin

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Output Current :

100mA

Voltage - Secondary (Full Load) :

Parallel 28V Series 56V

Power - Max :

6VA

Termination Style :

PC Pin

Type :

Semi-Toroidal

Height :

22.7mm

VA Rating :

6 VA

Max Power Dissipation :

6W

Approval Agency :

UL; CSA; TUV

Voltage - Isolation :

4000Vrms
