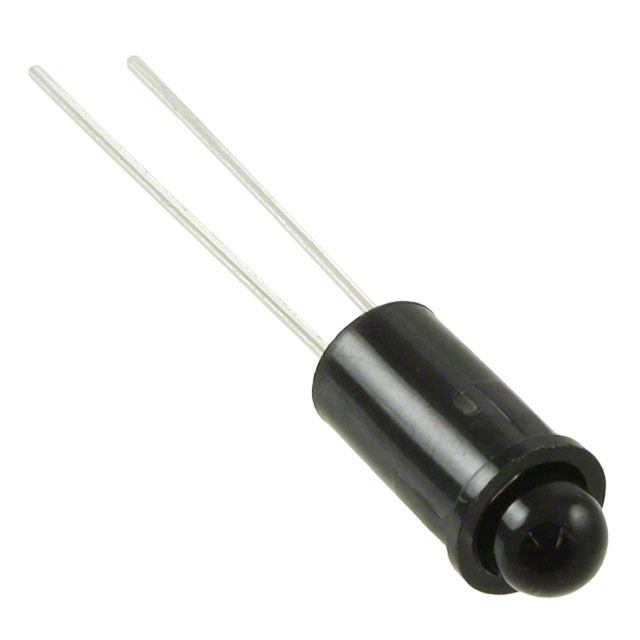

5596101001F
Or copy the link below:
- Mfr.Part #
- 5596101001F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED PMI SNAP-IN 635NM RED .250"
- Stock
- 28,703
- In Stock ：
- 28,703
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Color@Wavelength :
- Red
- Panel Cutout Shape :
- Round
- Ratings :
- Vf (Typ), If (Max)
- Mounting Feature :
- Panel Mount
- Terminal Pitch :
- 3.18mm
- Type :
- LED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8541.40.20.00
- Pbfree Code :
- yes
- Lamp Color :
- Red
- JESD-609 Code :
- e1
- Lens Color :
- Colorless
- Overall Height :
- 15.88mm
- Lens Style :
- Round with Domed Top
- Wavelength - Peak :
- 635nm
- Packing Method :
- Bulk
- Panel Cutout Dimensions :
- 0.25 (6.35mm)
- Number of Functions :
- 1
- Operating Temperature (Max) :
- 100°C
- Factory Lead Time :
- 10 Weeks
- Millicandela Rating :
- 2100mcd
- Voltage :
- 1.9V
- Luminous Intensity :
- 2100.0 mcd
- Published :
- 2015
- Surface Mount :
- No
- Number of Terminations :
- 2
- RoHS Status :
- ROHS3 Compliant
- Terminal Finish :
- Tin/Silver/Copper (Sn/Ag/Cu)
- Lens Transparency :
- Clear
- Viewing Angle :
- 50°
- Configuration :
- Single
- Termination Style :
- Wire Wrap
- Additional Feature :
- IC COMPATIBLE, HIGH RELIABILITY
- Current :
- 50mA
- Lens Size :
- 5mm T-1 3/4
- Operating Temperature (Min) :
- -40°C
- Series :
- 559
- Datasheets
- 5596101001F
