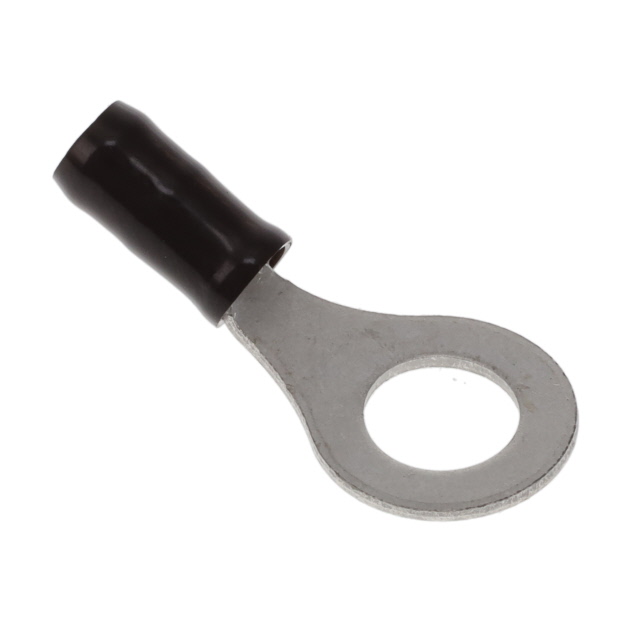

55936-2
Or copy the link below:
- Mfr.Part #
- 55936-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-22AWG #1/4
- Stock
- 618
- In Stock ：
- 618
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Heavy Duty :
- No
- Feature :
- Serrated Termination
- Material Thickness :
- 790μm
- Width - Outer Edges :
- 0.469 11.91mm
- Contact Material :
- Copper
- Material - Insulation :
- Polyamide (PA), Nylon
- Wire Gauge :
- 16-22 AWG
- Wire Gauge (Min) :
- 22 AWG
- Stud Size :
- M6
- Insulation :
- Insulated
- Wire Gauge (Max) :
- 16 AWG
- Pbfree Code :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Length :
- 27.3304mm
- ELV :
- Compliant
- Packaging :
- Tape and Reel (TR)
- Color :
- Black
- Lead Free :
- Not Applicable
- Terminal Type :
- Circular
- Stud Diameter :
- 6.718021 mm
- Voltage - Rated AC :
- 300V
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- RoHS Compliant
- Diameter - Inside :
- 3.25 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Mounting Type :
- Free Hanging (In-Line)
- Terminal and Terminal Block Type :
- RING TERMINAL
- Tongue Thickness :
- 790μm
- Contact Finish :
- Tin
- Thickness :
- 0.031 0.79mm
- Wire/Cable Diameter :
- 3.18 mm
- Published :
- 2008
- Stud/Tab Size :
- 1/4 Stud
- HTS Code :
- 8536.90.40.00
- Length - Overall :
- 1.078 27.38mm
- Series :
- PIDG
- Insulated Wire Support :
- yes
- ECCN Code :
- EAR99
- Termination :
- Crimp
- Insulation Diameter :
- 0.080 ~ 0.125 (2.03mm ~ 3.18mm)
- Number of Holes :
- 1
- Datasheets
- 55936-2
55936-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
