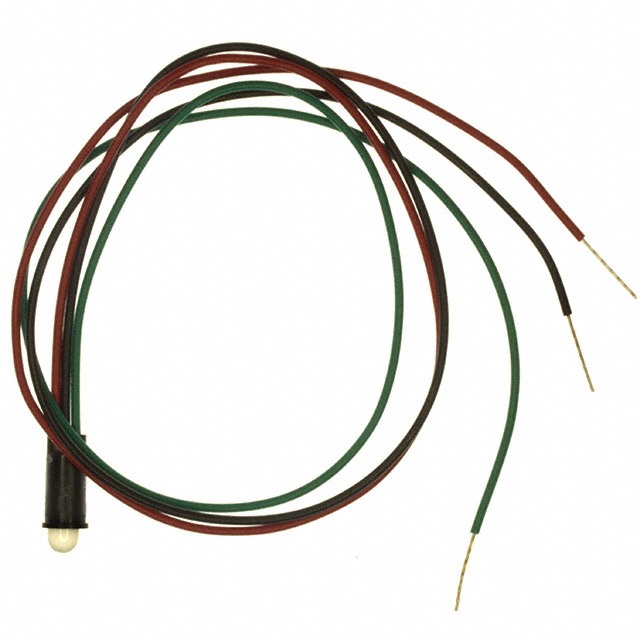

5593501007F
Or copy the link below:
- Mfr.Part #
- 5593501007F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED SNAP-IN PANEL 5MM RD/GRN
- Stock
- 1,074
- In Stock ：
- 1,074
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Lamp Color :
- Green, Red
- Surface Mount :
- No
- Mounting Feature :
- Panel Mount
- Terminal Finish :
- Tin/Silver/Copper (Sn/Ag/Cu)
- Lens Size :
- 5mm T-1 3/4
- Additional Feature :
- IC COMPATIBLE, HIGH RELIABILITY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Configuration :
- COMMON CATHODE, 2 ELEMENTS
- Termination Style :
- Wire Leads - 14 (355.60mm)
- Number of Functions :
- 1
- Voltage :
- 2.3V Green 2.1V Red
- Current :
- 30mA Green 30mA Red
- Ratings :
- Vf (Typ), If (Max)
- Lens Transparency :
- Diffused
- Luminous Intensity :
- 5.0/8.0 mcd
- Published :
- 2003
- Color@Wavelength :
- 3-Color
- Millicandela Rating :
- 8mcd Green, 5mcd Red
- Number of Terminations :
- 3
- Panel Cutout Shape :
- Round
- JESD-609 Code :
- e1
- Lens Style :
- Round with Domed Top
- Packing Method :
- Bulk
- Viewing Angle :
- 65°
- Wavelength - Peak :
- 565nm Green 635nm Red
- Overall Height :
- 19.06mm
- HTS Code :
- 8541.40.20.00
- RoHS Status :
- ROHS3 Compliant
- Type :
- LED
- Operating Temperature (Max) :
- 85°C
- Series :
- 559
- Panel Cutout Dimensions :
- 0.25 (6.35mm)
- Pbfree Code :
- yes
- Factory Lead Time :
- 10 Weeks
- Operating Temperature (Min) :
- -20°C
- Datasheets
- 5593501007F
