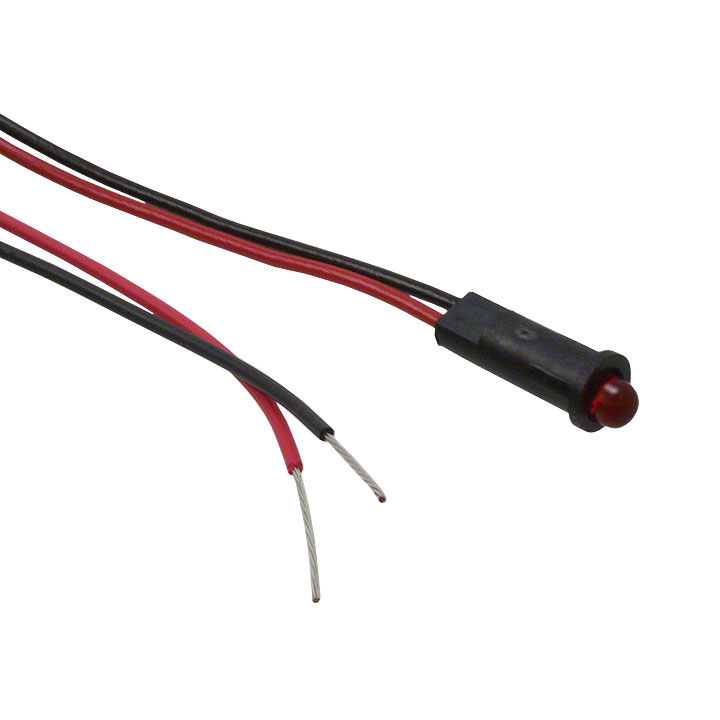

5581101007F

Manufacturer :

Dialight

Product Category :

Lens Size :

3mm T-1

Millicandela Rating :

1.8mcd

Ratings :

Vf (Typ), If (Max)

Luminous Intensity :

1.6 mcd

Configuration :

Single

Number of Functions :

1

Lamp Color :

Red

Series :

558

Voltage :

1.8V

Panel Cutout Shape :

Round

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

LED

JESD-609 Code :

e4

Operating Temperature (Min) :

-25°C

RoHS Status :

ROHS3 Compliant

Viewing Angle :

60 deg

Overall Height :

4.78mm

T-code :

T-1

Number of Terminations :

2

HTS Code :

8541.40.20.00

Termination Style :

Wire Leads - 14 (355.60mm)

Operating Temperature (Max) :

85°C

Factory Lead Time :

10 Weeks

Packing Method :

Bulk

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Additional Feature :

IC COMPATIBLE, HIGH RELIABILITY

Terminal Pitch :

2.54mm

Wavelength - Peak :

635nm

Published :

2006

Current :

7mA

Surface Mount :

No

Lens Transparency :

Diffused

Pbfree Code :

yes

Mounting Feature :

Panel Mount

Lens Style :

Round with Domed Top

Color@Wavelength :

Red

Panel Cutout Dimensions :

0.16 (4.06mm)
