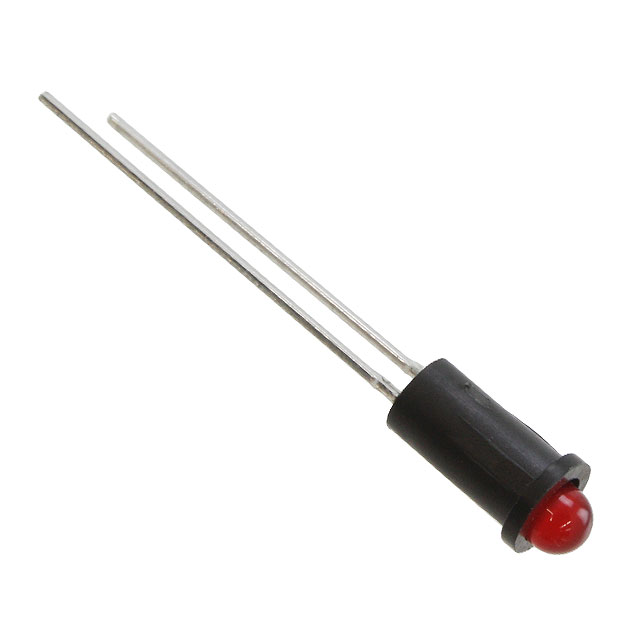

5580101001F
Or copy the link below:
- Mfr.Part #
- 5580101001F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED PANEL IND RED DIFF SNAP-IN
- Stock
- 769
- In Stock ：
- 769
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature (Max) :
- 85°C
- Operating Temperature (Min) :
- -25°C
- HTS Code :
- 8541.40.20.00
- Lens Transparency :
- Diffused
- Luminous Intensity :
- 10.0 mcd
- Current :
- 20mA
- Terminal Finish :
- Tin/Silver/Copper (Sn/Ag/Cu)
- Overall Height :
- 4.78mm
- Wavelength - Peak :
- 650nm
- Terminal Pitch :
- 2.54mm
- Packing Method :
- Bulk
- Millicandela Rating :
- 10mcd
- Voltage :
- 2V
- Lens Style :
- Round with Domed Top
- Panel Cutout Dimensions :
- 0.16 (4.06mm)
- Number of Functions :
- 1
- Mounting Feature :
- Panel Mount
- Factory Lead Time :
- 10 Weeks
- RoHS Status :
- ROHS3 Compliant
- Series :
- 558
- Number of Terminations :
- 2
- Surface Mount :
- No
- Lens Size :
- 3mm T-1
- Additional Feature :
- IC COMPATIBLE, HIGH RELIABILITY
- Published :
- 2009
- Panel Cutout Shape :
- Round
- Color@Wavelength :
- Red
- Configuration :
- Single
- Pbfree Code :
- yes
- Lamp Color :
- Red
- Viewing Angle :
- 55 deg
- Ratings :
- Vf (Typ), If (Max)
- Type :
- LED
- T-code :
- T-1
- JESD-609 Code :
- e1
- Datasheets
- 5580101001F
