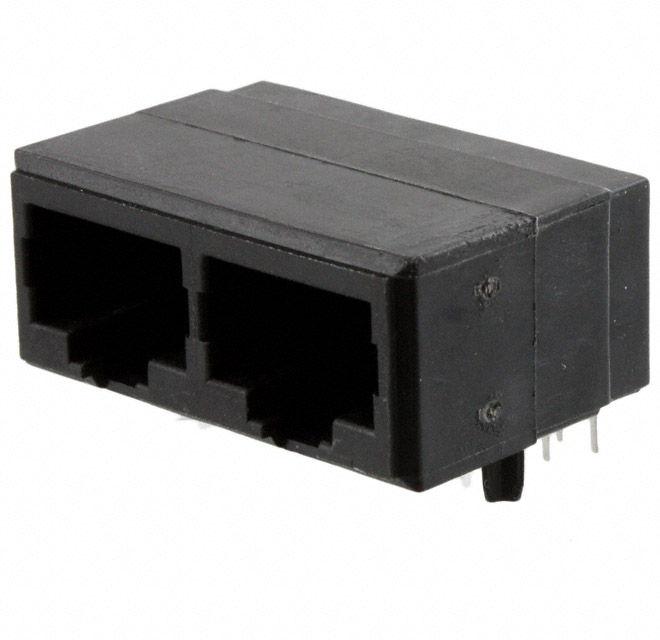

557560-1
Or copy the link below:
- Mfr.Part #
- 557560-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A UNSHLD
- Stock
- 43,387
- In Stock ：
- 43,387
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Feature :
- Board Guide
- Contact Finish :
- Gold
- Housing Material :
- Polyamide (PA), Nylon
- Contact Style :
- TELCOM, MODULAR
- Keyed :
- No
- Tab Direction :
- Down
- Ratings :
- Cat4
- Shielding :
- Unshielded
- Gender :
- FEMALE
- Depth :
- 20.57mm
- Lead Free :
- Lead Free
- PCB Contact Pattern :
- STAGGERED
- Packaging :
- Tray
- LED Color :
- Does Not Contain LED
- Connector Type :
- JACK
- Contact Resistance :
- 30mOhm
- ELV :
- Compliant
- Insulation Resistance :
- 500000000Ohm
- Preloaded :
- yes
- Length - Tail :
- 3.56mm
- Contact Material :
- Phosphor Bronze
- Reference Standard :
- UL, CSA
- Contact Finish Thickness :
- 50.0μin 1.27μm
- ECCN Code :
- EAR99
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Operating Temperature :
- -40°C~85°C
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Length :
- 30.48mm
- Body/Shell Style :
- Receptacle
- Number of Ports :
- 2
- Mount :
- Through Hole
- Factory Lead Time :
- 3 Weeks
- Number of Rows :
- 1
- Number of Contacts :
- 16
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 1997
- RoHS Status :
- Non-RoHS Compliant
- Plating Thickness :
- 50μin
- Mounting Type :
- Through Hole
- Reliability :
- COMMERCIAL
- Number of Positions :
- 8
- Pitch :
- 2.54mm
- Orientation :
- 90° Angle (Right)
- Durability :
- 750 Cycles
- Datasheets
- 557560-1
Jack Tray Unshielded 8p8c (RJ45, Ethernet) 2 Port 90° Angle (Right) Solder Through Hole -40°C~85°C
557560-1 Overview
The product is packaged in Jack.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.A variety of tasks can be managed via its 2 ports.With its Board Guide feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -40°C~85°C Operating Temperature.
557560-1 Features
557560-1 Applications
There are a lot of TE Connectivity AMP Connectors
557560-1 Modular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
