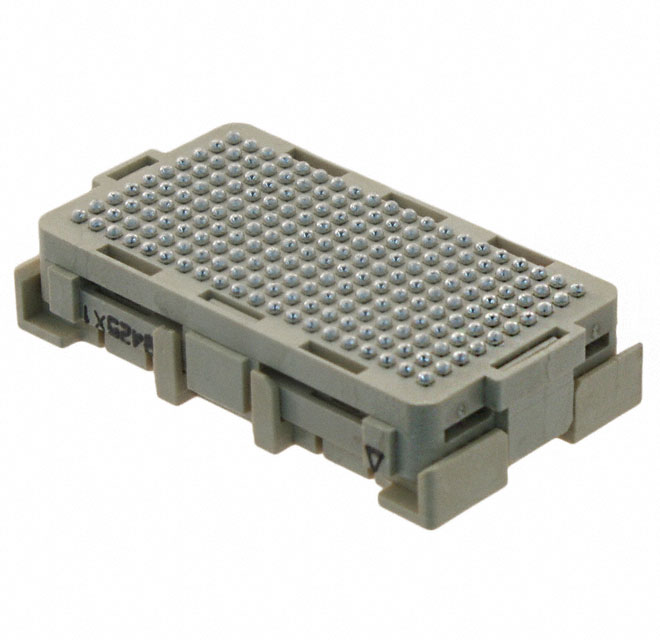

55724-101LF
Or copy the link below:
- Mfr.Part #
- 55724-101LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- BGA
- Datasheet
- Download
- Description
- CONN ARRAY RCPT 200POS SMD GOLD
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Packaging :
- Tape and Reel (TR)
- MIL Conformance :
- No
- Package / Case :
- BGA
- Lead Pitch :
- 1.27mm
- RoHS Status :
- RoHS Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Depth :
- 16.44mm
- Factory Lead Time :
- 8 Weeks
- JESD-609 Code :
- e1
- Voltage - Rated AC :
- 200V
- Contact Finish :
- Gold
- Voltage - Rated :
- 200V
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Max Current Rating :
- 450mA
- Connector Type :
- Array, Female Sockets
- Row Spacing :
- 1.27 mm
- Number of Rows :
- 10
- Material :
- LIQUID CRYSTAL POLYMER
- Filter Feature :
- No
- Insulation Resistance :
- 1GOhm
- Stack Height :
- 12mm
- Length :
- 29.6mm
- Mount :
- Surface Mount
- Total Number of Contacts :
- 200
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 85°C
- Gender :
- Receptacle
- Orientation :
- Straight
- Height Above Board :
- 0.211 5.35mm
- Contact Material :
- Gold, Nickel
- Manufacturer Package Identifier :
- 55724-101LF
- IEC Conformance :
- No
- Pitch :
- 0.050 1.27mm
- Height :
- 6.05mm
- Stack Height (Mating) :
- 6mm 12mm
- Current Rating :
- 450mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -40°C
- Series :
- MEG-Array®, MezzSelect™
- Number of Positions :
- 200
- Width :
- 17.43mm
- Max Voltage Rating (AC) :
- 200V
- Termination :
- Solder
- Housing Material :
- Polymer
- Lead Free :
- Lead Free
- ECCN Code :
- EAR99
- Mounting Type :
- Surface Mount
- REACH SVHC :
- No SVHC
- HTS Code :
- 8536.69.40.40
- Mixed Contacts :
- No
- Datasheets
- 55724-101LF
55724-101LF Documents
Array, Female Sockets Tape & Reel (TR) 10 Rows 0.050 1.27mm Surface Mount 200 Positions MEG-Array®, MezzSelect™ Gold Solder Gold, Nickel
55724-101LF Overview
The product comes in a package of Array, Female Sockets.To package the product, a Tape & Reel (TR) case is used.Surface Mount is the type of mounting for the device.The product is a member of the MEG-Array®, MezzSelect™ Series.For mounting this part, a Surface Mount socket is required.Use it when the temperature is below 85°C.Temperatures below -40°C are required for this device to operate.There is a device enclosed in the packaging with the BGA.
55724-101LF Features
MEG-Array®, MezzSelect™ series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
55724-101LF Applications
There are a lot of Amphenol ICC (FCI)
55724-101LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
