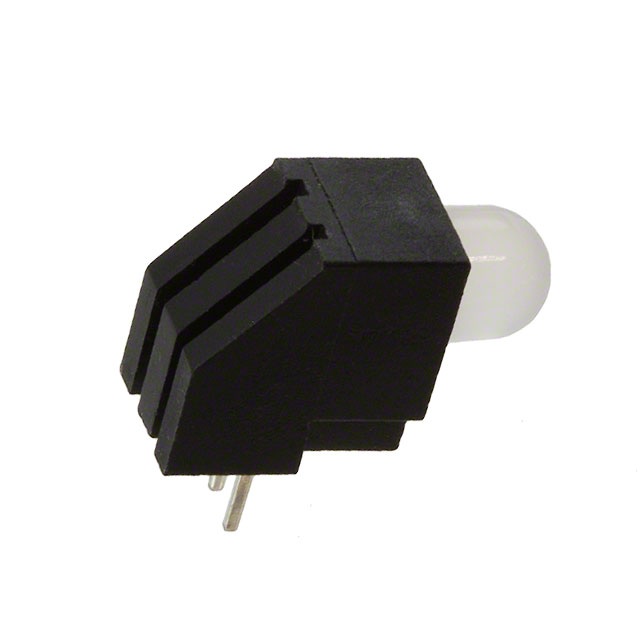

5503008F

Manufacturer :

Dialight

Product Category :

Packaging :

Bulk

Mounting Type :

Through Hole, Right Angle

Number of Terminations :

2

Overall Height :

9.4mm

Mounting Feature :

RADIAL MOUNT

Luminous Intensity-Min :

0.008 cd

Shape :

Round

Additional Feature :

High Reliability

T-code :

T-1 3/4

Operating Temperature (Min) :

-55°C

Lens Type :

Diffused

Wavelength - Peak :

565nm 660nm

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Factory Lead Time :

10 Weeks

Configuration :

Single

Surface Mount :

No

JESD-609 Code :

e4

Published :

2002

Luminous Intensity :

90.0/40.0 mcd

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size :

5mm

Operating Temperature (Max) :

100°C

Current :

20mA

Viewing Angle :

60°

HTS Code :

8541.40.20.00

Optoelectronic Device Type :

DUAL COLOR LED

Pbfree Code :

yes

Voltage - Rated :

2.1V Green 1.8V Red

Number of LEDs :

1

Forward Voltage-Max :

1.8V

Series :

550

Number of Functions :

1

Color :

Green, Red

Millicandela Rating :

40mcd Green, 90mcd Red

Terminal Pitch :

2.54mm

RoHS Status :

ROHS3 Compliant
