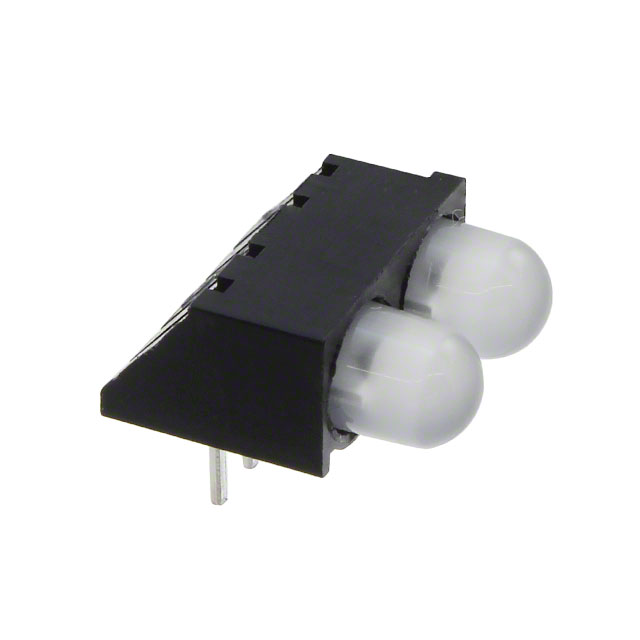

5503007002F

Manufacturer :

Dialight

Product Category :

Published :

2002

Color :

Green, Red (x 2)

Voltage - Rated :

2.1V Green 1.8V Red

Operating Temperature (Max) :

100°C

Luminous Intensity-Min :

0.002 cd

Millicandela Rating :

40mcd Green, 90mcd Red

JESD-609 Code :

e4

Overall Height :

6mm

Surface Mount :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Forward Voltage-Max :

3V

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Lens Type :

Diffused

Lens Size :

5mm T-1 3/4

Number of Functions :

2

Series :

550

Mounting Feature :

RADIAL MOUNT

Lens Style :

Round with Domed Top

HTS Code :

8541.40.20.00

Current :

20mA

Packaging :

Bulk

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Factory Lead Time :

10 Weeks

Terminal Pitch :

2.54mm

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Luminous Intensity :

90.0/40.0 mcd

Viewing Angle :

60°

Configuration :

2 Wide

Number of LEDs :

2

Number of Terminations :

4

Mounting Type :

Through Hole, Right Angle

Wavelength - Peak :

565nm 660nm

RoHS Status :

ROHS3 Compliant
