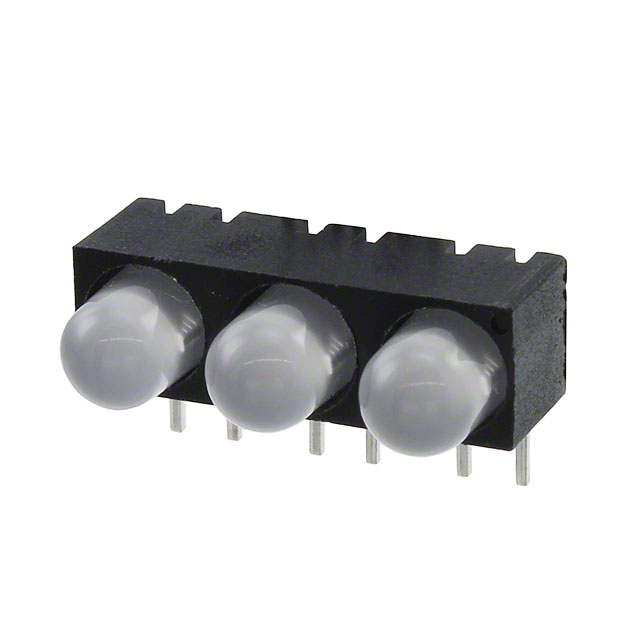

5503005003F

Manufacturer :

Dialight

Product Category :

Operating Temperature (Max) :

100°C

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current :

20mA

Packaging :

Bulk

Optoelectronic Device Type :

DUAL COLOR LED ARRAY

Mounting Feature :

RADIAL MOUNT

Luminous Intensity :

90.0/40.0 mcd

Operating Temperature (Min) :

-55°C

Viewing Angle :

60°

Terminal Pitch :

2.54mm

Number of Terminations :

6

Configuration :

3 Wide

Forward Voltage-Max :

1.8V

Surface Mount :

No

HTS Code :

8541.40.20.00

Series :

550

Overall Height :

5.96mm

Lens Type :

Diffused

Luminous Intensity-Min :

0.008 cd

Number of LEDs :

3

Number of Functions :

3

Wavelength - Peak :

565nm 660nm

Millicandela Rating :

40mcd Green, 90mcd Red

Color :

Green, Red (x 3)

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

JESD-609 Code :

e4

Mounting Type :

Through Hole, Right Angle

Published :

2002

Voltage - Rated :

2.1V Green 1.8V Red

Lens Size :

5mm T-1 3/4

Lens Style :

Round with Domed Top

Factory Lead Time :

10 Weeks

RoHS Status :

ROHS3 Compliant
