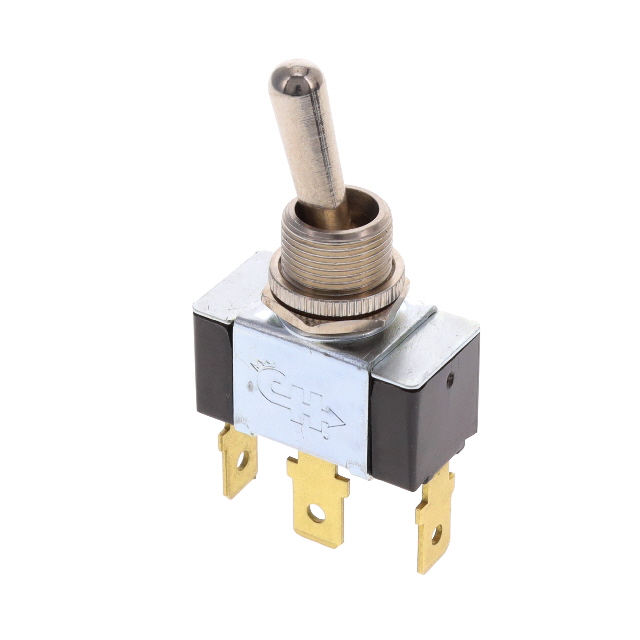

55015
Or copy the link below:
- Mfr.Part #
- 55015
- Manufacturer
- Littelfuse
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TGL SPDT
- Stock
- 37
- In Stock ：
- 37
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- JESD-609 Code :
- e0
- Packaging :
- Bulk
- Blow Characteristic :
- Fast
- Terminal Shape :
- PIN WIRE
- Switch Function :
- On-On
- Rated Current :
- 15A
- Physical Dimension :
- 2.41mm x 7.11mm
- Surface Mount :
- No
- HTS Code :
- 8536.10.00.40
- Actuator Type :
- Standard Round
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Actuator Length :
- 17.46mm
- Mounting Feature :
- Through Hole
- Current Rating (Amps) :
- 15A AC 25A DC
- Illumination :
- Non-Illuminated
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- Terminal Finish :
- TIN LEAD OVER COPPER
- Voltage - Rated DC :
- 12V
- Panel Cutout Dimensions :
- Circular - 11.90mm Dia
- Mounting Type :
- Panel Mount
- Body Length or Diameter :
- 2.41mm
- ECCN Code :
- EAR99
- Circuit :
- SPDT
- Bushing Thread :
- 15/32-32
- Actuator Material :
- Brass, Nickel Plated
- Voltage - Rated AC :
- 125V
- RoHS Status :
- Non-RoHS Compliant
- Factory Lead Time :
- 15 Weeks
- Body Height :
- 7.11mm
- Datasheets
- 55015
55015 datasheet pdf and Toggle Switches product details from Littelfuse Inc. stock available at
