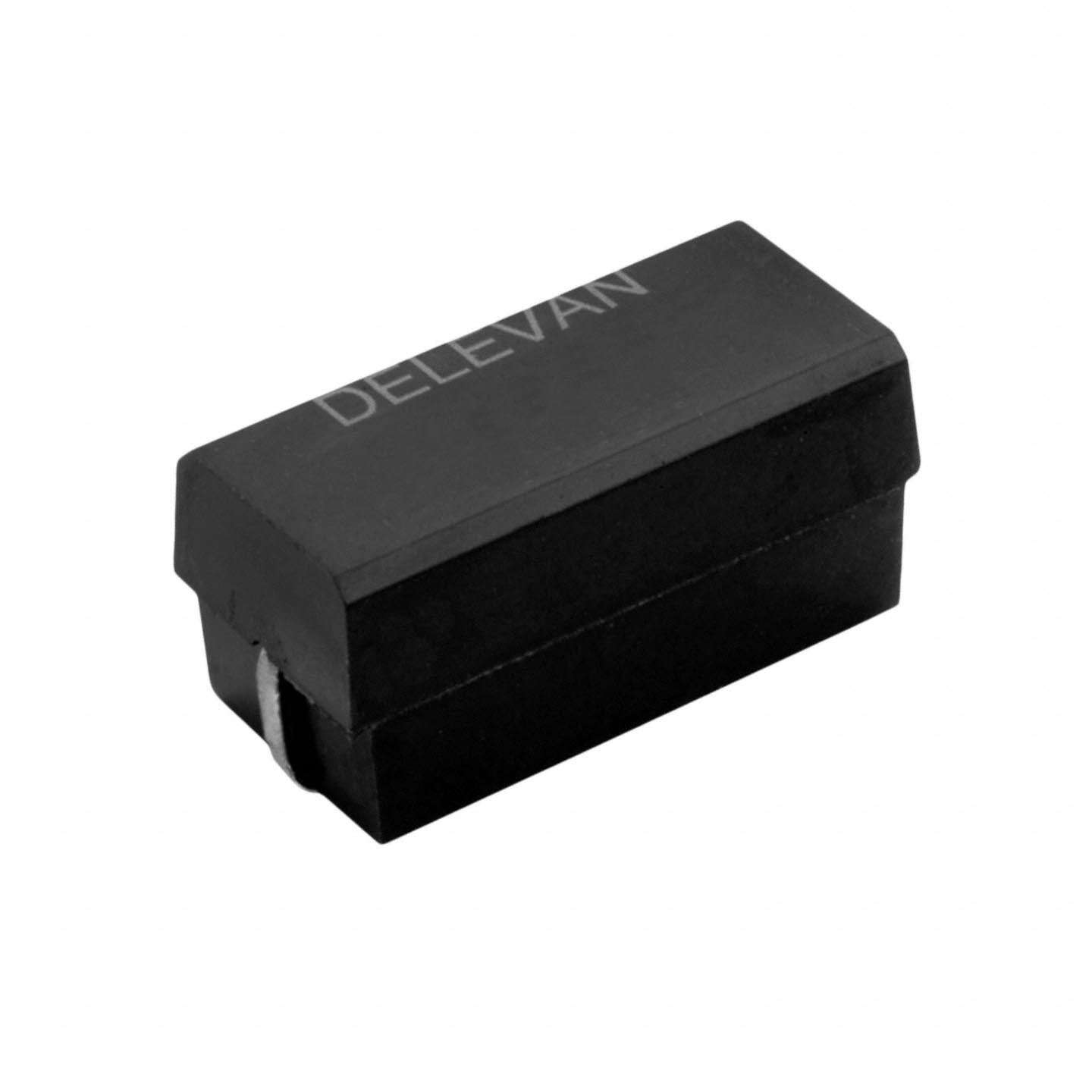

5500R-154K

Manufacturer :

API Delevan

Product Category :

Fixed Inductors

Construction :

RECTANGULAR

Size / Dimension :

1.050Lx0.495W 26.67mmx12.57mm

Current - Saturation :

1.43A

Test Frequency :

1kHz

Depth :

12.96mm

RoHS Status :

ROHS3 Compliant

Height Seated (Max) :

0.520 13.21mm

Operating Temperature :

-55°C~130°C

Package / Case :

Nonstandard

Packaging :

Tape and Reel (TR)

Packing Method :

TR, Paper, 13 Inch

Resistance :

129mOhm

Inductor Type :

GENERAL PURPOSE INDUCTOR

Material - Core :

Ferrite

Series :

5500R

Tolerance :

±10%

Number of Terminations :

2

Max DC Current :

2.78A

Number of Functions :

1

Terminal Placement :

DUAL ENDED

HTS Code :

8504.50.80.00

Factory Lead Time :

5 Weeks

DC Resistance (DCR) :

129mOhm Max

ECCN Code :

EAR99

Shape/Size Description :

RECTANGULAR PACKAGE

Mounting Type :

Surface Mount

Radiation Hardening :

No

Current Rating :

2.78A

Height :

13.21mm

Inductor Application :

POWER INDUCTOR

Mount :

Surface Mount

Inductance :

150μH

Termination :

SMD/SMT

Terminal Shape :

WRAPAROUND

Shielding :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2011
