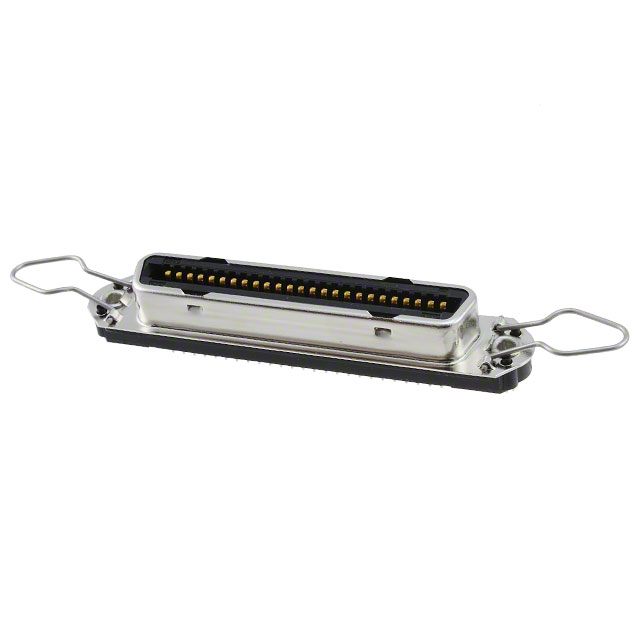

5406874-1
Or copy the link below:
- Mfr.Part #
- 5406874-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SCSI RCPT 50POS VERT SOLDER
- Stock
- 27,215
- In Stock ：
- 27,215
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Centronics Connectors
- ELV :
- Compliant
- Factory Lead Time :
- 14 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- Contact Gender :
- FEMALE
- Series :
- CHAMP .085
- Contact Finish :
- Gold
- Pitch :
- 2.16mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Post Length :
- 3.68mm
- Type :
- SCSI
- Shielding :
- Shielded
- HTS Code :
- 8536.69.40.30
- Termination :
- Solder
- Preloaded :
- yes
- Total Number of Contacts :
- 50
- Connector Style :
- Outer Shroud Contacts
- Plating Thickness :
- 760 nm
- PCB Contact Pattern :
- RECTANGULAR
- Contact Style :
- BELLOWED TYPE
- Number of Rows :
- 2
- Depth :
- 13.84mm
- Mount :
- Edge
- Color :
- Black
- PCB Contact Row Spacing :
- 4.064 mm
- Shell Material :
- CARBON STEEL
- Contact Plating :
- Gold, Tin
- Lead Length :
- 3.68mm
- Number of Positions :
- 50
- Published :
- 2005
- Number Of PCB Rows :
- 2
- Hole Diameter :
- 3.2512 mm
- ECCN Code :
- EAR99
- Feature :
- Bail Lock, Board Lock, Shielded
- Housing Material :
- Polyester
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Pattern :
- RECTANGULAR
- Sealable :
- No
- Number of Ports :
- 1
- RoHS Status :
- RoHS Compliant
- Shell Finish :
- Nickel
- Orientation :
- Vertical
- Length :
- 84.33mm
- Mounting Type :
- Through Hole
- Connector Type :
- Receptacle
- Mating Connector Lock :
- With
- Reliability :
- COMMERCIAL
- Datasheets
- 5406874-1
5406874-1 datasheet pdf and D-Shaped Connectors - Centronics product details from TE Connectivity AMP Connectors stock available at Xinshop
