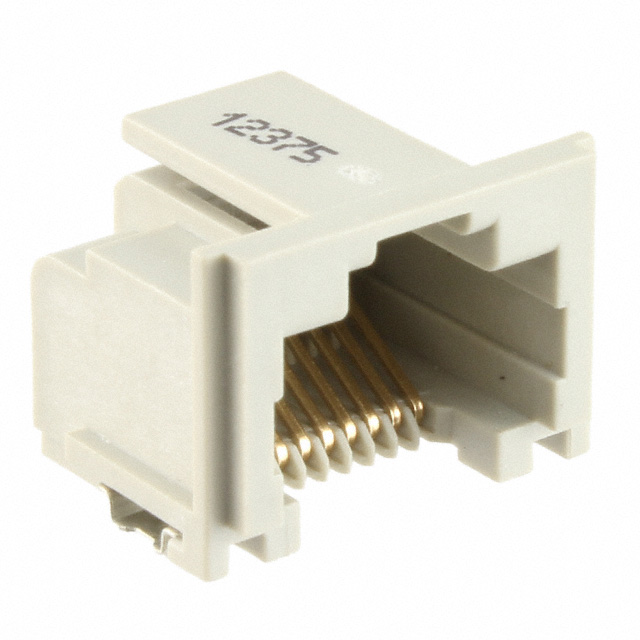

5406721-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Number of Positions Loaded :

8

REACH SVHC :

No SVHC

Gender :

FEMALE

Durability :

750 Cycles

Termination :

Solder

Mounting Option 1 :

LOCKING

Depth :

12.95mm

Element Configuration :

Single

Flammability Rating :

UL94 V-0

ELV :

Compliant

Connector Type :

JACK

JESD-609 Code :

e3

Max Voltage Rating (AC) :

150V

Pitch :

1.01mm

Published :

2009

Housing Color :

Grey

Filter Feature :

No

Mixed Contacts :

No

Feature :

Board Lock, Panel Stops, Solder Retention

Voltage - Rated :

150V

Insulation Resistance :

500000000Ohm

Length - Tail :

1.52mm

Current Rating :

1.5A

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Keyed :

No

Orientation :

90° Angle (Right)

UL Flammability Code :

94V-0

Shell Material :

Polyphenylene Sulfide

Height :

12.4mm

Option :

GENERAL PURPOSE

PCB Mounting Orientation :

RIGHT ANGLE

Reference Standard :

UL, CSA

Contact Finish :

Gold

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Style :

TELCOM, MODULAR

Shielding :

Unshielded

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ports :

1

PCB Thickness :

1.57mm

Tab Direction :

UP

Length :

16.76mm

Circuit Application :

Signal

LED Color :

Does Not Contain LED

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Contact Finish Thickness :

50.0μin 1.27μm

Insulator Color :

Gray

Packaging :

Tape and Reel (TR)

MIL Conformance :

No

Housing Material :

Thermoplastic

Contact Material :

COPPER ALLOY

Mounting Type :

Surface Mount

Factory Lead Time :

11 Weeks

Operating Temperature :

-40°C~85°C

DIN Conformance :

No

Plating Thickness :

760 nm

Series :

A-RJ45

Contact Finish Thickness - Mating :

760 nm

Empty Shell :

No

ECCN Code :

EAR99

Total Number of Contacts :

8

RoHS Status :

RoHS Compliant

IEC Conformance :

No

Contact Resistance :

30mOhm

Pbfree Code :

yes
