Mfr.Part #
5406566-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN MOD JACK 8P8C R/A SHIELDED
Stock
1,620
In Stock :
1,620

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Modular Connector Jacks
Reliability :
COMMERCIAL
Factory Lead Time :
10 Weeks
MIL Conformance :
No
Pitch :
2.54mm
DIN Conformance :
No
JESD-609 Code :
e3
Depth :
21.34mm
Flammability Rating :
UL94 V-0
Filter Feature :
No
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Length - Tail :
3.56mm
Number of Ports :
2
Length :
31.24mm
PCB Contact Pattern :
STAGGERED
Contact Finish Thickness :
50.0μin 1.27μm
Housing Material :
Polyamide (PA), Nylon
Color :
Black
Height :
13.64mm
Contact Finish :
Gold
REACH SVHC :
Unknown
Feature :
Board Guide
IEC Conformance :
No
Connector Type :
JACK
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Reference Standard :
UL, CSA
PCB Mounting Orientation :
RIGHT ANGLE
Packaging :
Tray
LED Color :
Does Not Contain LED
UL Flammability Code :
94V-0
Ratings :
Cat5
Option :
GENERAL PURPOSE
Published :
2009
Max Voltage Rating (AC) :
150V
Tab Direction :
Down
Current Rating :
200mA
Number of Rows :
1
Contact Material :
Phosphor Bronze
Circuit Application :
Signal
Contact Finish Thickness - Mating :
1.27μm
Contact Style :
TELCOM, MODULAR
Body Breadth :
0.537 inch
Plating Thickness :
50μin
RoHS Status :
RoHS Compliant
Gender :
FEMALE
Operating Temperature :
-40°C~85°C
Pbfree Code :
yes
Mounting Type :
Through Hole
Number of Contacts :
8
Shell Material :
COPPER ALLOY
Durability :
750 Cycles
Shielding :
Shielded, EMI Finger
Termination :
Solder
Number of Pins :
16
Orientation :
90° Angle (Right)
Mixed Contacts :
No
Insulation Resistance :
500000000Ohm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Empty Shell :
No
Shell Finish :
Tin
Keyed :
No
Mount :
Panel, Through Hole
Datasheets
5406566-2
Introducing Modular Connector Jacks TE Connectivity AMP Connectors 5406566-2 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Through Hole, Number of Pins:16, 5406566-2 pinout, 5406566-2 datasheet PDF, 5406566-2 amp .Beyond Modular Connector Jacks TE Connectivity AMP Connectors 5406566-2 ,we also offer 0955016669, E5J88-00LJG2-L, SS-6488-NF, Our vast inventory has you covered. Contact us now for immediate solutions.

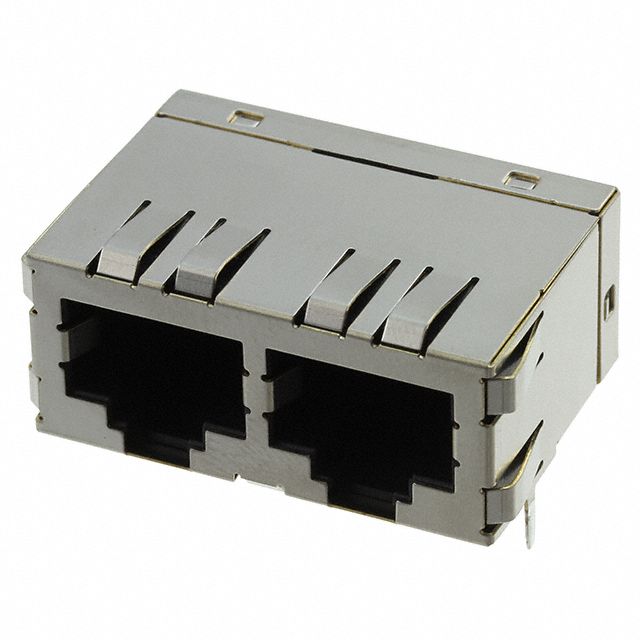

TE Connectivity AMP Connectors 5406566-2


Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 2 Port 90° Angle (Right) Solder Through Hole -40°C~85°C

5406566-2 Overview


A Jack package is included with it.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.It is equipped with 16 pins.With 2 ports, it is capable of managing a wide range of tasks.In many ways, Board Guide makes it more powerful.By Panel, Through Hole, the part is mounted.Operating temperature is set to -40°C~85°C.
