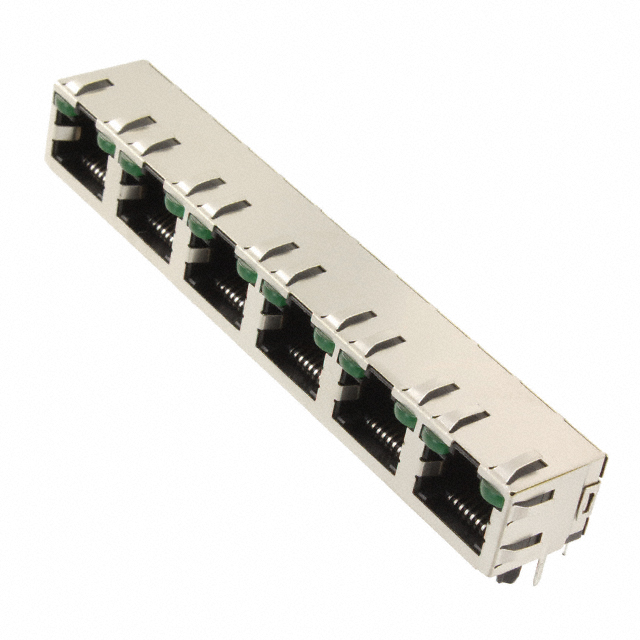

5406554-5
Or copy the link below:
- Mfr.Part #
- 5406554-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 41,029
- In Stock ：
- 41,029
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Mount :
- Panel
- Mounting Type :
- Through Hole
- Number of Ports :
- 6
- Orientation :
- 90° Angle (Right)
- Ratings :
- Cat5
- Feature :
- Board Guide
- Number of Positions :
- 8
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length - Tail :
- 2.54mm
- Tab Direction :
- UP
- Packaging :
- Tray
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Keyed :
- No
- Pitch :
- 2.03mm
- Factory Lead Time :
- 25 Weeks
- Published :
- 2009
- Number of Contacts :
- 48
- ELV :
- Compliant
- Shielding :
- Shielded, EMI Finger
- Housing Material :
- Thermoplastic
- Color :
- Black
- Max Voltage Rating (AC) :
- 150V
- Length :
- 96.27mm
- Current Rating :
- 1.5A
- Operating Temperature :
- -40°C~85°C
- LED Color :
- Green - Green
- Contact Finish Thickness - Mating :
- 1.27μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- Number of Rows :
- 1
- Depth :
- 15.75mm
- Plating Thickness :
- 1.27μm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Flammability Rating :
- UL94 V-0
- Height :
- 13.35mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Connector Type :
- JACK
- Termination :
- Solder
- Datasheets
- 5406554-5
Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 6 Port 90° Angle (Right) Solder Through Hole -40°C~85°C
5406554-5 Overview
The connector type Jack refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It features 6 ports for managing a variety of tasks.Its Board Guide feature renders it more powerful in many ways.The part is mounted by Panel.The device runs in -40°C~85°C Operating Temperature.
5406554-5 Features
5406554-5 Applications
There are a lot of TE Connectivity AMP Connectors
5406554-5 Modular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
