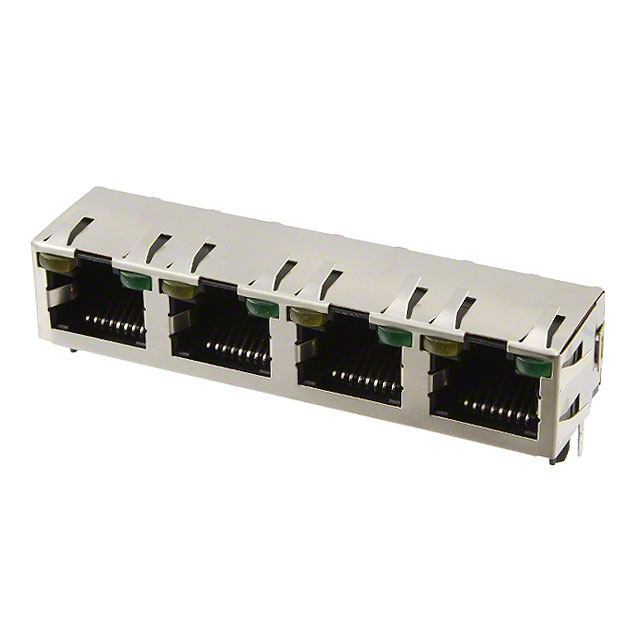

5406552-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Number of Rows :

1

Mounting Type :

Through Hole

Option :

GENERAL PURPOSE

Voltage - Rated AC :

150V

Empty Shell :

No

Length - Tail :

2.54mm

Height :

13.35mm

Body Breadth :

0.55 inch

PCB Contact Pattern :

STAGGERED

Insulation Resistance :

500000000Ohm

Contact Finish :

Gold

ELV :

Compliant

Published :

2009

Ratings :

Cat5

Filter Feature :

No

Flammability Rating :

UL94 V-0

Gender :

FEMALE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

REACH SVHC :

No SVHC

RoHS Status :

RoHS Compliant

Width :

64.77mm

Tab Direction :

UP

Factory Lead Time :

25 Weeks

Mount :

Panel, Through Hole

Connector Type :

JACK

Mixed Contacts :

No

Number of Ports :

4

Shell Material :

COPPER-ZINC ALLOY

Depth :

15.75mm

Termination :

Solder

Operating Temperature :

-40°C~85°C

Length :

64.77mm

Reference Standard :

UL, CSA

Pbfree Code :

yes

Max Voltage Rating (AC) :

150V

Feature :

Board Guide

IEC Conformance :

No

Lead Free :

Lead Free

Contact Finish Thickness :

50.0μin 1.27μm

Contact Style :

TELCOM, MODULAR

Durability :

750 Cycles

Housing Material :

Thermoplastic

Packaging :

Tray

Reliability :

COMMERCIAL

Pitch :

2.03mm

Plating Thickness :

1.27μm

Color :

Black

Contact Material :

Phosphor Bronze

PCB Mounting Orientation :

RIGHT ANGLE

Number of Positions Loaded :

32

Number of Contacts :

8

Circuit Application :

Signal

Current Rating :

1.5A

Shell Finish :

Nickel

LED Color :

Yellow - Green

Orientation :

90° Angle (Right)

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Keyed :

No

Shielding :

Shielded, EMI Finger

MIL Conformance :

No

Contact Finish Thickness - Mating :

1.27μm

DIN Conformance :

No

Voltage - Rated :

150V
