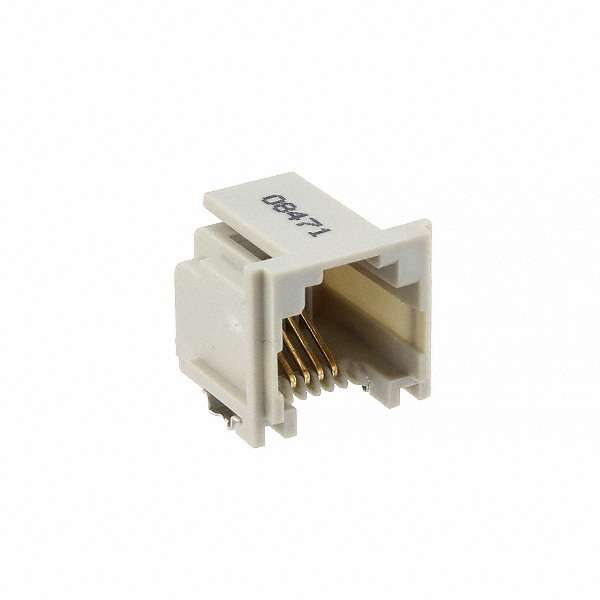

5406545-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Number of Ports :

1

Number of Contacts :

6

Insulator Color :

Gray

Contact Gender :

FEMALE

PCB Contact Pattern :

RECTANGULAR

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mounting Option 1 :

LOCKING

Max Current Rating :

200mA

Housing Color :

Grey

Filter Feature :

No

Contact Material :

COPPER ALLOY

Height :

12.4mm

PCB Thickness :

1.57mm

Operating Temperature :

-40°C~85°C

Packaging :

Tape and Reel (TR)

Shell Material :

POLYETHYLENE

Contact Style :

TELCOM, MODULAR

Connector Type :

JACK

Number of Positions/Contacts :

6p4c (RJ11, RJ14)

Contact Finish :

Gold

Shielding :

Unshielded

Number of Pins :

4

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Tab Direction :

UP

LED Color :

Does Not Contain LED

Depth :

12.95mm

Orientation :

90° Angle (Right)

Factory Lead Time :

17 Weeks

Flammability Rating :

UL94 V-0

Circuit Application :

Signal

Contact Finish Thickness :

50.0μin 1.27μm

Feature :

Panel Stops, Solder Retention

Pbfree Code :

yes

Published :

2008

MIL Conformance :

No

DIN Conformance :

No

Keyed :

No

Pitch :

1.01mm

Mixed Contacts :

No

PCB Mounting Orientation :

RIGHT ANGLE

Durability :

750 Cycles

Plating Thickness :

30μin

Housing Material :

Thermoplastic

Reference Standard :

UL, CSA

Length :

13.21mm

Empty Shell :

No

Series :

REL

ELV :

Compliant

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Termination :

Solder

Mounting Type :

Surface Mount

Element Configuration :

Single

Package Quantity :

600

Insulation Resistance :

500000000Ohm

Length - Tail :

1.52mm

Option :

GENERAL PURPOSE
