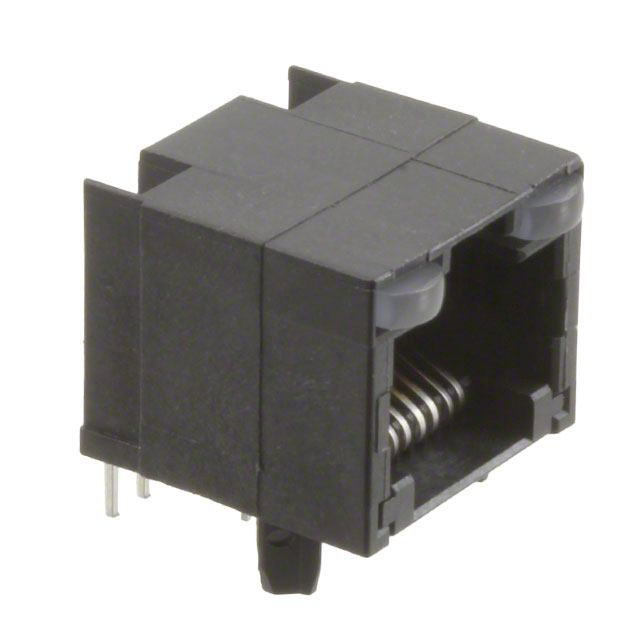

5406533-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Length - Tail :

2.54mm

Operating Temperature :

-40°C~85°C

Termination :

Solder

Circuit Application :

Signal

JESD-609 Code :

e3

Total Number of Contacts :

8

Reference Standard :

UL, CSA

Insulation Resistance :

500000000Ohm

Contact Finish Thickness - Mating :

1.27μm

UL Flammability Code :

94V-0

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Number of Positions Loaded :

8

Durability :

750 Cycles

Height :

13.59mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Mounting Option 1 :

LOCKING

Color :

Black

Feature :

Board Guide

Housing Material :

Thermoplastic

Current Rating :

1.5A

Flammability Rating :

UL94 V-0

Pitch :

2.04mm

Published :

2011

Factory Lead Time :

15 Weeks

PCB Thickness :

1.57mm

PCB Contact Pattern :

STAGGERED

IEC Conformance :

No

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Contact Style :

TELCOM, MODULAR

Element Configuration :

Single

Connector Type :

JACK

LED Color :

Orange, Green - Orange, Green

Depth :

15.24mm

Packaging :

Tray

Filter Feature :

No

Mounting Type :

Through Hole

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Number of Ports :

1

Contact Material :

Phosphor Bronze

Tab Direction :

UP

PCB Mounting Orientation :

RIGHT ANGLE

Mixed Contacts :

No

Shielding :

Unshielded

Contact Finish Thickness :

50.0μin 1.27μm

Empty Shell :

No

Orientation :

90° Angle (Right)

MIL Conformance :

No

Body Breadth :

0.535 inch

ELV :

Compliant

Contact Finish :

Gold

DIN Conformance :

No

Keyed :

No

Plating Thickness :

1.27μm

Ratings :

Cat5

Shell Material :

POLYETHYLENE

Length :

16.51mm

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)
