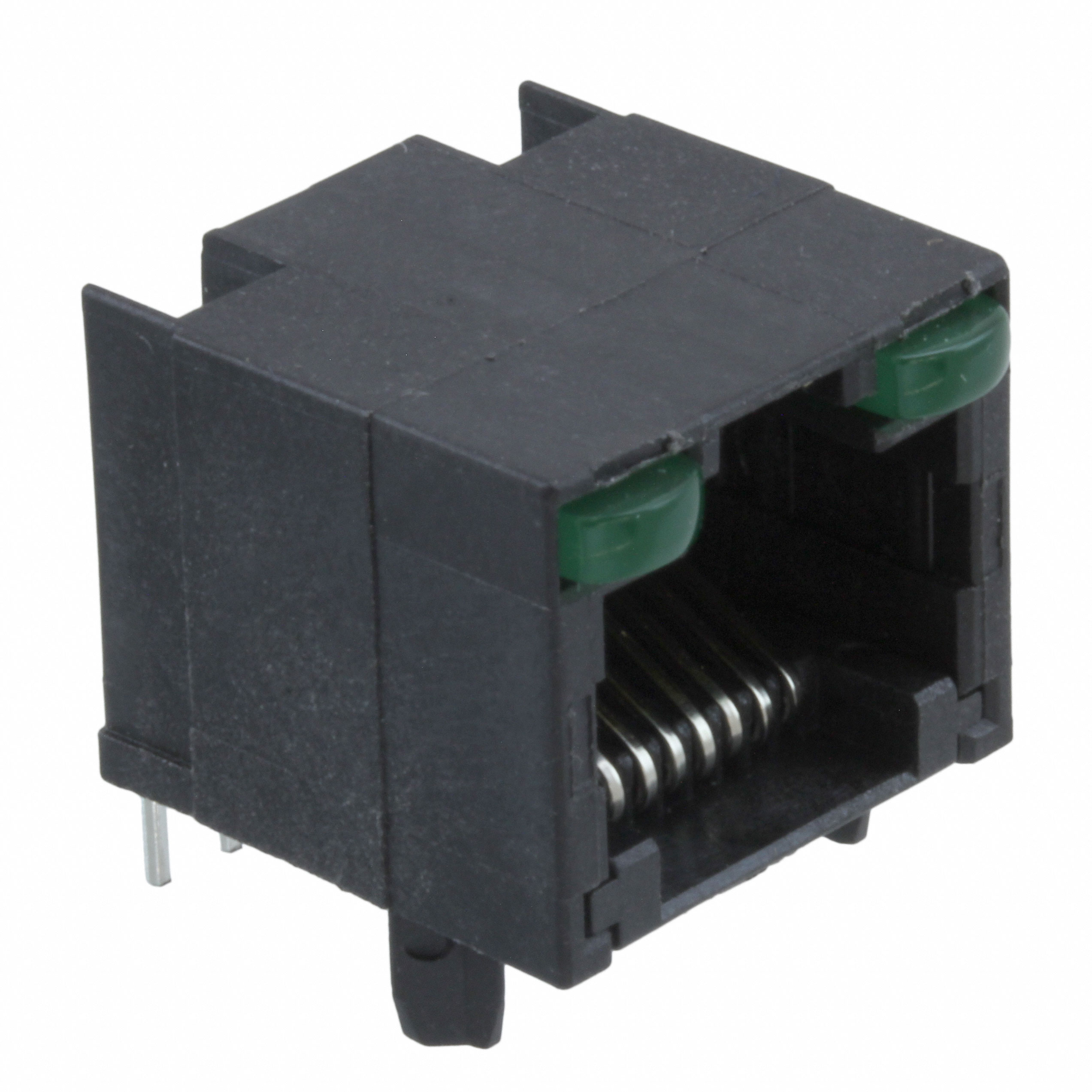

5406533-5
Or copy the link below:
- Mfr.Part #
- 5406533-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A UNSHLD
- Stock
- 508
- In Stock ：
- 508
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Contact Plating :
- Gold
- LED Color :
- Green - Green
- Color :
- Black
- Factory Lead Time :
- 25 Weeks
- Number of Positions :
- 8
- Plating Thickness :
- 1.27μm
- Flammability Rating :
- UL94 V-0
- Element Configuration :
- Single
- Number of Ports :
- 1
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Feature :
- Board Guide
- Shielding :
- Unshielded
- ELV :
- Compliant
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Circuit Application :
- Signal
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Contact Material :
- Phosphor Bronze
- Tab Direction :
- UP
- Number of Positions Loaded :
- 8
- Mounting Type :
- Through Hole
- Length - Tail :
- 2.54mm
- Current Rating :
- 1.5A
- Ratings :
- Cat5
- Operating Temperature :
- -40°C~85°C
- Connector Type :
- JACK
- Housing Color :
- Black
- Number of Contacts :
- 8
- Packaging :
- Tray
- Contact Finish Thickness - Mating :
- 1.27μm
- Published :
- 2011
- Contact Finish :
- Gold
- PCB Mounting Orientation :
- RIGHT ANGLE
- Termination :
- Solder
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Housing Material :
- Thermoplastic
- Orientation :
- 90° Angle (Right)
- Keyed :
- No
- Height :
- 13.59mm
- PCB Thickness :
- 1.57mm
- Datasheets
- 5406533-5
Jack Tray Unshielded 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C
5406533-5 Overview
Packaging for this item is Jack.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The device has 1 ports for managing a variety of tasks.It is more powerful in many ways due to its Board Guide feature.It operates at an operating temperature of -40°C~85°C.
5406533-5 Features
5406533-5 Applications
There are a lot of TE Connectivity AMP Connectors
5406533-5 Modular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
