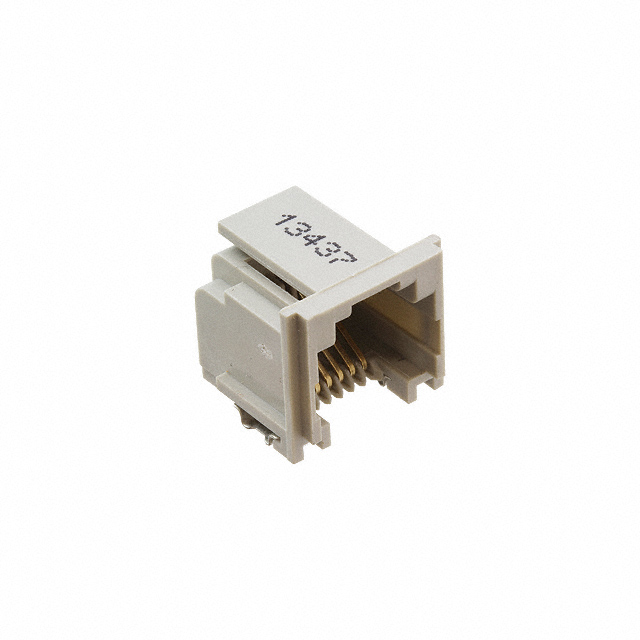

5406514-2
Or copy the link below:
- Mfr.Part #
- 5406514-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 6P6C R/A UNSHLD
- Stock
- 8,160
- In Stock ：
- 8,160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- JESD-609 Code :
- e3
- Housing Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 6
- Max Current Rating :
- 1.5A
- Mounting Type :
- Surface Mount
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-0
- Published :
- 2009
- Board Mounting Option :
- PEG
- Body Breadth :
- 0.488 inch
- Body Length or Diameter :
- 0.52 inch
- Additional Feature :
- 3m
- Orientation :
- 90° Angle (Right)
- Contact Style :
- TELCOM, MODULAR
- Durability :
- 750 Cycles
- Tab Direction :
- Down
- Ratings :
- Cat3
- Shell Material :
- Polyphenylene Sulfide
- LED Color :
- Does Not Contain LED
- PCB Thickness :
- 1.6mm
- Circuit Application :
- Signal
- Option :
- GENERAL PURPOSE
- Plating :
- Gold
- Termination :
- Solder
- Height :
- 12.95mm
- RoHS Status :
- RoHS Compliant
- Reference Standard :
- UL, CSA
- Package Quantity :
- 200
- Reliability :
- COMMERCIAL
- Packaging :
- Tape and Reel (TR)
- Keyed :
- No
- Operating Temperature :
- -40°C~85°C
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Feature :
- Board Lock
- MIL Conformance :
- No
- Insulation Resistance :
- 500000000Ohm
- Factory Lead Time :
- 11 Weeks
- Connector Type :
- JACK
- Number of Ports :
- 1
- Color :
- Tan
- Number of Positions/Contacts :
- 6p6c (RJ11, RJ12, RJ14, RJ25)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Gender :
- FEMALE
- IEC Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Empty Shell :
- No
- Mounting Option 1 :
- LOCKING
- DIN Conformance :
- No
- Filter Feature :
- No
- Pbfree Code :
- yes
- Shielding :
- Unshielded
- Datasheets
- 5406514-2
Jack Tape & Reel (TR) Unshielded 6p6c (RJ11, RJ12, RJ14, RJ25) 1 Port 90° Angle (Right) Solder Surface Mount -40°C~85°C
5406514-2 Overview
It comes in Jack packaging.There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.Moreover, there are a number of other features, including 3M, to name just a few.A variety of tasks can be managed through its 1 ports.In many ways, its Board Lock feature makes it more powerful.In this case, the device operates at -40°C~85°C Operating Temperature.
5406514-2 Features
5406514-2 Applications
There are a lot of TE Connectivity AMP Connectors
5406514-2 Modular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
