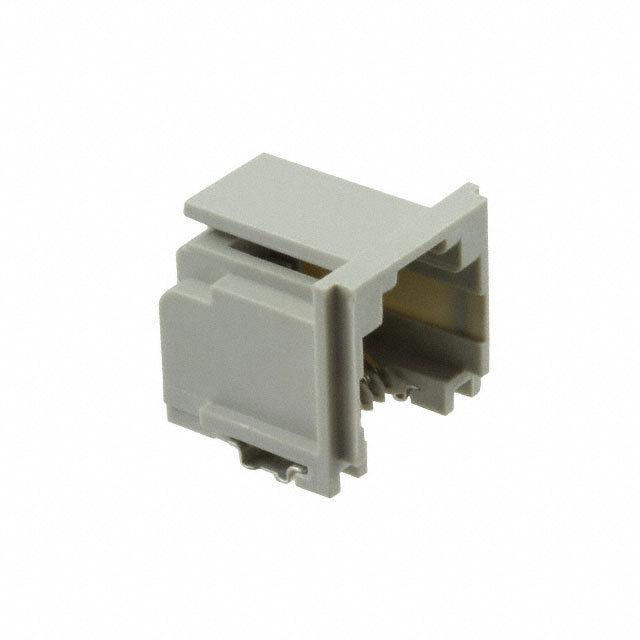

5406514-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Operating Temperature :

-40°C~85°C

Insulation Resistance :

500000000Ohm

IEC Conformance :

No

Contact Finish :

Gold

Additional Feature :

3m

Number of Ports :

1

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Depth :

12.95mm

PCB Mounting Orientation :

RIGHT ANGLE

Mounting Type :

Surface Mount

Max Voltage Rating (AC) :

125V

Factory Lead Time :

11 Weeks

Height :

12.95mm

RoHS Status :

RoHS Compliant

Durability :

750 Cycles

Plating Thickness :

50μin

Shell Material :

POLYETHYLENE

Keyed :

No

Flammability Rating :

UL94 V-0

Mounting Option 1 :

LOCKING

Empty Shell :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Breadth :

0.488 inch

Mixed Contacts :

No

Orientation :

90° Angle (Right)

Housing Material :

Thermoplastic

Pitch :

1.02mm

Option :

GENERAL PURPOSE

Max Current Rating :

1.5A

Packaging :

Tape and Reel (TR)

MIL Conformance :

No

DIN Conformance :

No

Termination :

Solder

Circuit Application :

Signal

Element Configuration :

Single

Housing Color :

Grey

Published :

2011

Reliability :

COMMERCIAL

Connector Type :

JACK

Color :

Tan

Contact Gender :

FEMALE

LED Color :

Does Not Contain LED

Number of Positions Loaded :

6

Total Number of Contacts :

6

Reference Standard :

UL, CSA

Number of Positions/Contacts :

6p6c (RJ11, RJ12, RJ14, RJ25)

PCB Thickness :

1.6mm

Feature :

Board Lock

Filter Feature :

No

Body Length or Diameter :

0.52 inch

Shielding :

Unshielded

Contact Style :

TELCOM, MODULAR

Package Quantity :

600

Tab Direction :

Down

Contact Finish Thickness :

50.0μin 1.27μm

Contact Material :

COPPER ALLOY

Ratings :

Cat3

Pbfree Code :

yes
