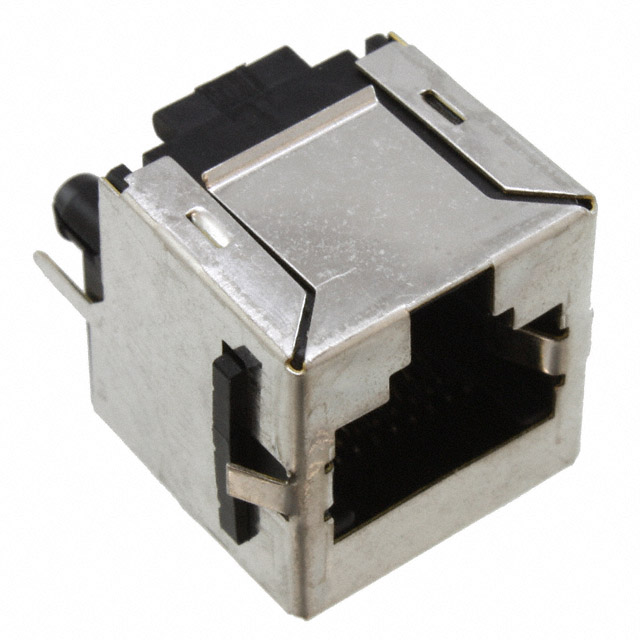

5406436-1
Or copy the link below:
- Mfr.Part #
- 5406436-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C VERT SHIELDED
- Stock
- 8,679
- In Stock ：
- 8,679
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Shell Finish :
- Tin
- Housing Material :
- Polyester
- JESD-609 Code :
- e3
- IEC Conformance :
- No
- Height :
- 16.64mm
- Feature :
- Board Lock, Panel Stops
- DIN Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Tab Direction :
- User Selectable
- Contact Style :
- TELCOM, MODULAR
- Connector Type :
- JACK
- Published :
- 2007
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- ELV :
- Compliant
- Body Breadth :
- 0.653 inch
- Current Rating :
- 200mA
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Mounting Type :
- Through Hole
- Insulation Resistance :
- 500000000Ohm
- Shielding :
- Shielded, EMI Finger
- Length - Tail :
- 3.18mm
- Number of Ports :
- 1
- Max Voltage Rating (AC) :
- 150V
- Length :
- 18.03mm
- Packaging :
- Tray
- MIL Conformance :
- No
- Contact Finish :
- Gold
- Contact Resistance :
- 30mOhm
- Plating Thickness :
- 50μin
- Contact Finish Thickness - Mating :
- 1.27μm
- Operating Temperature :
- -40°C~85°C
- Contact Gender :
- Male
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Direction :
- User Selectable
- ECCN Code :
- EAR99
- Ratings :
- Cat3
- Pbfree Code :
- yes
- Durability :
- 750 Cycles
- Contact Material :
- Phosphor Bronze
- Keyed :
- No
- Reference Standard :
- UL, CSA
- Mount :
- Panel, Through Hole
- Lead Free :
- Lead Free
- PCB Thickness :
- 1.57mm
- Color :
- Black
- Reliability :
- COMMERCIAL
- Circuit Application :
- Signal
- Depth :
- 16.63mm
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- STAGGERED
- Number of Positions :
- 8
- Orientation :
- Vertical
- Total Number of Contacts :
- 8
- Element Configuration :
- Single
- Factory Lead Time :
- 9 Weeks
- Pitch :
- 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material :
- COPPER ALLOY
- LED Color :
- Does Not Contain LED
- Datasheets
- 5406436-1
Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 1 Port Vertical Solder Through Hole -40°C~85°C
5406436-1 Overview
The product comes in a package of Jack.Its mounting type is Through Hole.Packaging is performed using a Tray case.The device is equipped with 1 ports for the management of a variety of tasks.A number of features make it more powerful because of its Board Lock, Panel Stops feature.Panel, Through Hole mounts the part.There is no operating temperature for the device.
5406436-1 Features
5406436-1 Applications
There are a lot of TE Connectivity AMP Connectors
5406436-1 Modular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
