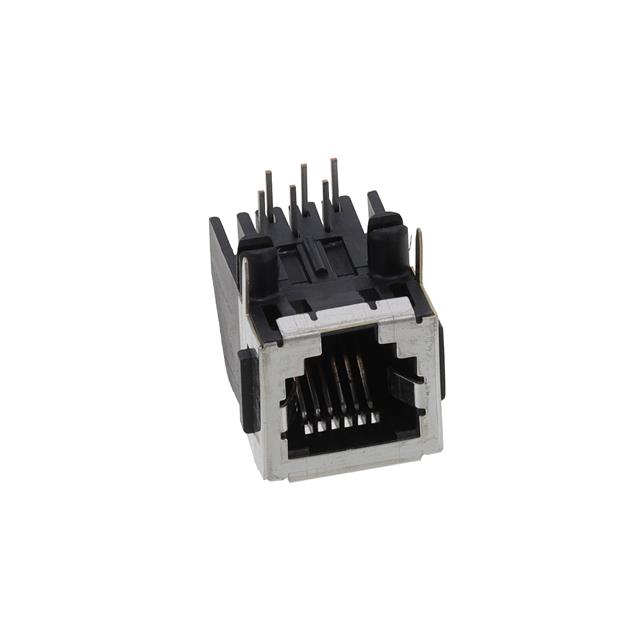

5406435-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Height :

12.57mm

Shell Material :

COPPER ALLOY

Packaging :

Tray

Circuit Application :

Signal

PCB Mounting Orientation :

RIGHT ANGLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

MIL Conformance :

No

Number of Positions Loaded :

6

Tab Direction :

Down

Connector Type :

JACK

Package Quantity :

152

LED Color :

Does Not Contain LED

Feature :

Board Lock, Panel Stops

JESD-609 Code :

e3

Depth :

18.54mm

ELV :

Compliant

Max Current Rating :

200mA

Contact Finish Thickness :

50.0μin 1.27μm

Mounting Type :

Through Hole

Shielding :

Shielded

DIN Conformance :

No

PCB Thickness :

1.57mm

Number of Ports :

1

Orientation :

90° Angle (Right)

Contact Material :

Phosphor Bronze

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

IEC Conformance :

No

Number of Positions/Contacts :

6p6c (RJ11, RJ12, RJ14, RJ25)

Factory Lead Time :

10 Weeks

Contact Finish :

Gold

Keyed :

No

Operating Temperature :

-40°C~85°C

Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Color :

Black

Total Number of Contacts :

6

Filter Feature :

No

Contact Gender :

FEMALE

Element Configuration :

Single

Housing Material :

Polyamide (PA), Nylon

Length - Tail :

3.8mm

Termination :

Solder

Published :

2007

Shell Finish :

Tin

Empty Shell :

No

ECCN Code :

EAR99

Length :

15.88mm

Ratings :

Cat3

RoHS Status :

RoHS Compliant
