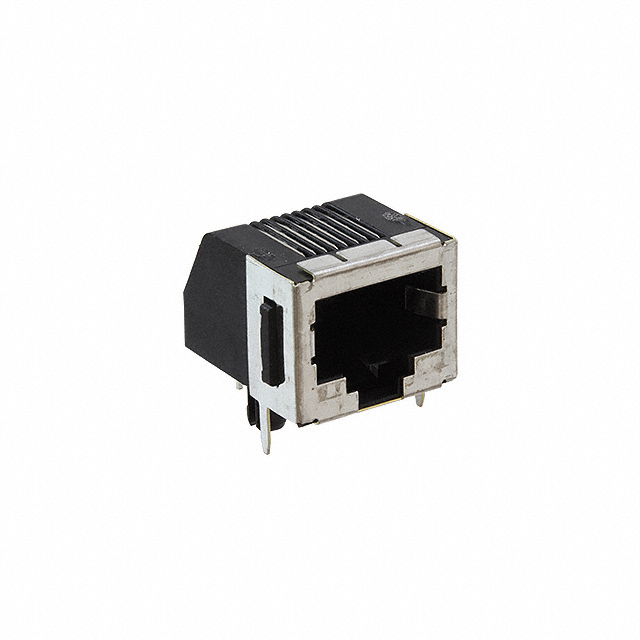

5406429-1
Or copy the link below:
- Mfr.Part #
- 5406429-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 5,802
- In Stock ：
- 5,802
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Circuit Application :
- Signal
- Housing Material :
- Polyamide (PA), Nylon
- Packaging :
- Tray
- Connector Type :
- JACK
- Contact Finish Thickness - Mating :
- 1.27μm
- Height :
- 12.7mm
- Ratings :
- Cat3
- Mixed Contacts :
- No
- Feature :
- Board Lock, Panel Stops
- Contact Style :
- TELCOM, MODULAR
- Published :
- 2007
- Contact Gender :
- FEMALE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Option :
- GENERAL PURPOSE
- Contact Material :
- Phosphor Bronze
- Plating Thickness :
- 50μin
- Mounting Type :
- Through Hole
- Max Voltage Rating (AC) :
- 150V
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Number of Ports :
- 1
- Reliability :
- COMMERCIAL
- Element Configuration :
- Single
- Shell Finish :
- Tin
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- PCB Contact Pattern :
- STAGGERED
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Insulation Resistance :
- 500000000Ohm
- Shielding :
- Shielded
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~85°C
- Contact Resistance :
- 30mOhm
- Color :
- Black
- Length :
- 17.91mm
- IEC Conformance :
- No
- Number of Positions :
- 8
- Filter Feature :
- No
- MIL Conformance :
- No
- Factory Lead Time :
- 11 Weeks
- Flammability Rating :
- UL94 V-0
- Pitch :
- 2.54mm
- Orientation :
- 90° Angle (Right)
- Contact Finish :
- Gold
- Reference Standard :
- UL
- Shell Material :
- COPPER ALLOY
- DIN Conformance :
- No
- LED Color :
- Does Not Contain LED
- Durability :
- 750 Cycles
- Empty Shell :
- No
- Tab Direction :
- Down
- Total Number of Contacts :
- 8
- Keyed :
- No
- Current Rating :
- 200mA
- Length - Tail :
- 2.79mm
- PCB Thickness :
- 1.57mm
- Mount :
- Panel, Through Hole
- ECCN Code :
- EAR99
- Body Breadth :
- 0.495 inch
- Depth :
- 18.42mm
- Datasheets
- 5406429-1
Jack Tray Shielded 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C
5406429-1 Overview
It comes in Jack packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.A variety of tasks can be managed through its 1 ports.In many ways, its Board Lock, Panel Stops feature makes it more powerful.Panel, Through Hole is used to mount the part.In this case, the device operates at -40°C~85°C Operating Temperature.
5406429-1 Features
5406429-1 Applications
There are a lot of TE Connectivity AMP Connectors
5406429-1 Modular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
