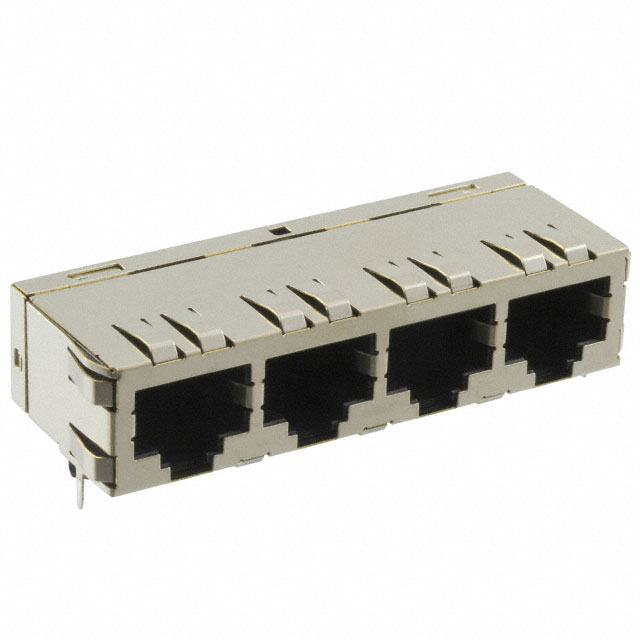

5406203-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

PCB Contact Pattern :

STAGGERED

RoHS Status :

RoHS Compliant

Durability :

500 Cycles

ELV :

Compliant

Depth :

21.34mm

ECCN Code :

EAR99

Insulation Resistance :

500000000Ohm

Contact Finish :

Gold

IEC Conformance :

No

Pitch :

2.54mm

Current Rating :

1.5A

PCB Mounting Orientation :

RIGHT ANGLE

Plating Thickness :

1.27μm

Factory Lead Time :

11 Weeks

Color :

Black

Tab Direction :

Down

Published :

2007

Keyed :

No

Body Breadth :

0.537 inch

Contact Finish Thickness - Mating :

1.27μm

Height :

13.64mm

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Lead Free :

Lead Free

Width :

61mm

Packaging :

Tray

Material :

Nylon

MIL Conformance :

No

Gender :

FEMALE

REACH SVHC :

No SVHC

Contact Finish Thickness :

50.0μin 1.27μm

Reference Standard :

UL, CSA

Mixed Contacts :

No

Shielding :

Shielded, EMI Finger

Circuit Application :

Signal

Ratings :

Cat5

Filter Feature :

No

Number of Positions Loaded :

32

Mounting Type :

Through Hole

Number of Contacts :

8

Operating Temperature :

-40°C~85°C

JESD-609 Code :

e3

LED Color :

Does Not Contain LED

Mounting Option 1 :

LOCKING

Housing Material :

Polyamide (PA), Nylon

Contact Resistance :

30mOhm

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Empty Shell :

No

Max Voltage Rating (AC) :

150V

Termination :

Solder

Number of Rows :

1

Option :

GENERAL PURPOSE

Shell Finish :

TIN/LEAD OVER NICKEL

DIN Conformance :

No

Feature :

Board Guide

Contact Material :

Phosphor Bronze

Contact Style :

TELCOM, MODULAR

Number of Ports :

4

Length - Tail :

3.56mm

Orientation :

90° Angle (Right)

Length :

61mm

Connector Type :

JACK

Reliability :

COMMERCIAL

Voltage - Rated AC :

150V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0
